AX22RWING-440/90
QTY
PURCHASEThe AXIS 440 rear wing is the allround rear wing that does everything well. It feels looser than the 500mm rear wing, it's playful and overall high performing.
You can combine the 440 rear wing with either the Standard, Short or ULTRA Short Red Fuselages for quicker turning and looser feel.

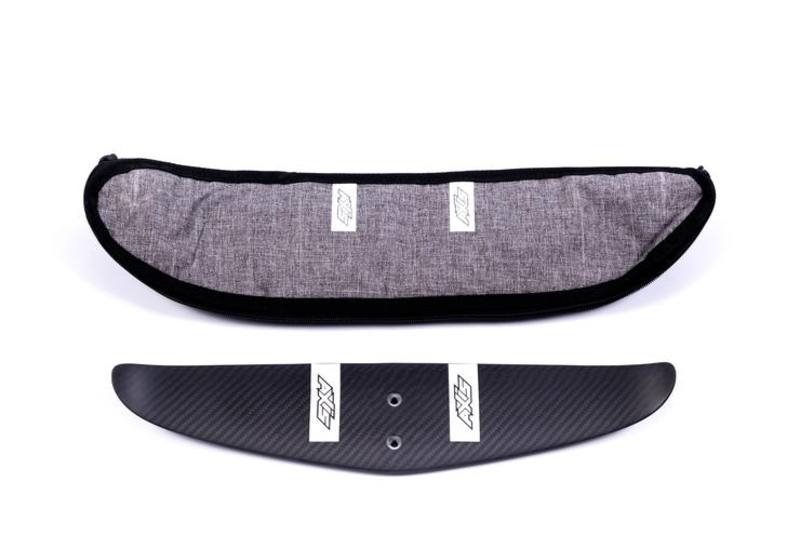

When you purchase the AXIS 440 carbon rear wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.
WINGSPAN: 440 mm / 17.32 in
CHORD: 90 mm / 3.54 in
ASPECT RATIO: 6.37
ACTUAL AREA : 318.94 cm² / 49.44 IN²
PROJECTED AREA: 303.97 cm² / 47.12 IN²
VOLUME: 192.81 cm³ / 4.97 IN³
Assembly
What screws to mount wing to the fuselage:
Rear Wing |
Front Screw |
Rear Screw |
500mm x 90mm |
M6 x 25mm |
M6 x 25mm |
440mm x 90mm |
M6 x 25mm |
M6 x 25mm |
400mm x 90mm |
M6 x 25mm |
M6 x 25mm |
460mm x 60mm |
M6 x 22mm |
M6 x 22mm |
400mm x 60mm |
M6 x 22mm |
M6 x 22mm |
420mm x 60mm |
M6 x 22mm |
M6 x 22mm |
380mm x 60mm |
M6 x 22mm |
M6 x 22mm |
390mm x 80mm |
M6 x 25mm |
M6 x 25mm |
370mm x 80mm |
M6 x 25mm |
M6 x 25mm |
