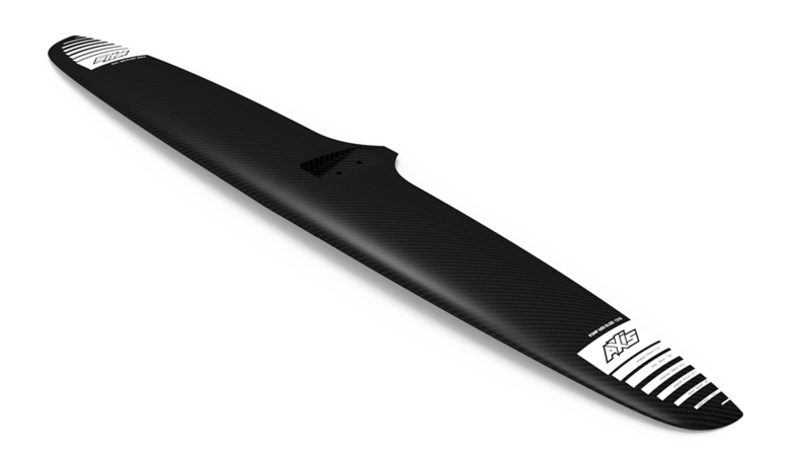

The AXIS PNG 1300 Carbon Front wing is the biggest wing of its kind on the market. There is nothing like it - The absolute Glider.

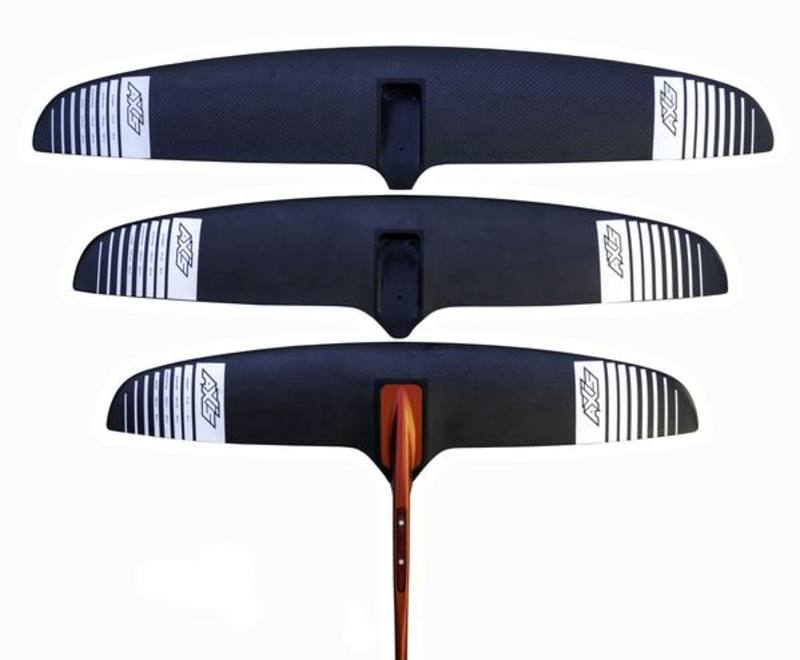

The AXIS PNG 1300, together with the 1150, 1010 and the 910, 910B and 850 form our Pump and Glide wing family.







The AXIS PNG wings are designed to be easy and early to lift for their size. The have tons of control, and feel comfortable for most levels of riding. Our Glide wings pump unreal, and glide effortlessly and endlessly. And they are fast wings, but their focus is not to be the fastest wing on the market. But instead, to be the easiest high aspect wing that almost everyone can ride, and can improve their level of riding right away.



The 1300 is the biggest wing of the PNG collection. It's actually the biggest wing across any other wing on the market with the longest wingspan in the industry. We wanted a wing that will lift very very early, and would glide endlessly, w/out slowing down.

The AXIS PNG 1300 wing was designed to dominate the smallest foiling conditions. From the lightest wind WING Surfing, to tiny bumps SUP and SURF foiling, and effortless lift behind the BOAT, the AXIS 1300 performs like no other high aspect wing ever dreamed of. The amount of glide and pumping ability of the AXIS 1300 is tremendous. This is a very high aspect ratio wing. at nearly 10 Aspect Ratio, this is a very special wing, designed for endless glides.

The AXIS PNG 1300 carbon wing connects to the red fuselages with 3 x M8, 20mm screws. At 1300mm wingspan the AXIS 1300 is a massive wing, over twice as stiff as the 1010, benefiting from the AXIS PNG rigidity and stiffness of engineering and construction.





As with every AXIS front wing, the graphics on the wings give you all possible measurements, and for 2021 we added the Aspect Ratio on the wings, so you can best compare and also quickly swap pieces or get new accessories for your foil.







AXIS PNG 1300 Carbon Wing

Technical Data:

WINGSPAN: 1300 mm / 51 inches

MAX CHORD: 180mm, 7inches

ASPECT RATIO: 9.94

ACTUAL AREA 1712 square cm / 265 square inches

PROJECTED AREA: 1700 square cm / 263 square inches

VOLUME: 1895 cubic cm / 116 cubic inches

Recommended use:

WING Surfing for all levels and the lightest possible conditions

Downwinding - Lightest wind / smaller waves

SUP / Surf - Tiny bumps and endless gliding

Wake foiling - Early lift / easiest pump

Pump Foiling - Endless

Windsurf foiling - very early and super easy lift



Rear Wing Options:

• 500mm Carbon for max control, stability and slower ride (entry levels)
• 460mm Carbon for high speed and loose turning (advanced)
• 420mm Carbon for the ultimate performance (speed and turning - intermediate +). One of our favorite rear wings for fast riding and carving.
• 440mm Carbon for control and stability (all levels)
• 400mm Carbon for looser feel and carvy turns while still maintaining good amount of control (Intermediate)
• 390mm Carbon for Wing and Surf with good turning control and additional glide
• 370mm Carbon for loose feel and fast turning, with less stability (intermediate).
• 340mm Carbon for even looser feel and even less drag and more speed. (advanced)
• 500mm Anhedral Carbon specific to windsurf foiling

When you purchase the AXIS carbon front wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.



Assembly

What screws to mount wing to the fuselage:

PNG Wing	Front Screw	Middle Screw	Rear Screw
1300mm x 180mm	M8 x 20mm	no screw needed	M8 x 20mm
1150mm x 180mm	M8 x 20mm	no screw needed	M8 x 20mm
1010mm x 170mm	M8 x 20mm	no screw needed	M8 x 20mm
910mm x 160mm	M8 x 20mm	no screw needed	M8 x 20mm
910mm x 160mm	M6 x 14mm	M8 x 20mm	M8 x 20mm
850mm x 150mm	M6 x 14mm	M8 x 20mm	M8 x 20mm
