Foil Drive Gen2 MAX Batteries Max & Sport

FD 101/102


Buy Foil Drive Gen2  MAX Batteries Max & Sport in NZ.

Please choose an option:






MAX BATTERY

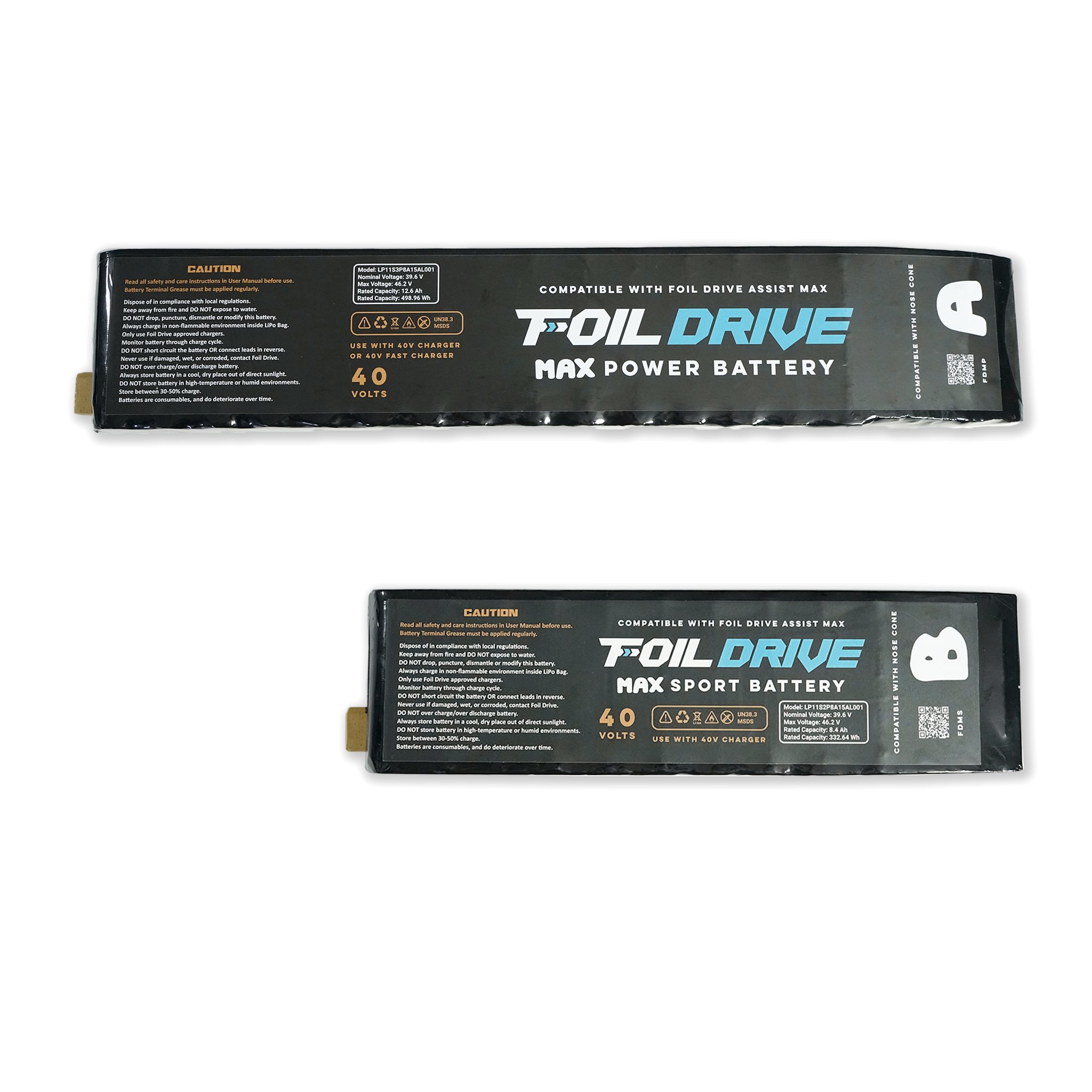

FD 101/102 : Foil Drive Gen2  MAX Battery - 101_foil_drive_max_batteries_s23.jpg

Nominal Voltage: 39.6 V
Max Voltage: 46.2 V
Rated Capacity: 12.6 Ah
Rated Capacity: 498.96 Wh
Battery Weight: 2.65kg (5.84lbs)
Certifications: UN, CE, IP68

Battery Dimensions (As is, not in case):
Assist MAX Power: 420x75x40mm
Assist MAX Power in Bag: 440x100x60mm
Battery Density: 184 Wh/kg



The Foil Drive MAX Power Battery is the largest battery with 498Wh capacity. This offers the longest run time for those looking for high power performance.

As with all Gen2 Foil Drive batteries, the MAX Power Battery is certified IP68 rated for increased protection and peace of mind against water and dust.

The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.



Maximum boost: 24%

Max boost time: 18 seconds



Only compatible with Foil Drive Assist MAX.

It is important to properly care for your Foil Drive battery. Click here to learn about lithium battery use, care and storage.
