INCLUDES: Mast Top Plate + Alu Mast +  Titan Mast Foot

The F-ONE aluminum mast can be used for all disciplines: kite, surf foil, wing foil, SUP foil and windfoil. The profile is extruded with precision from 6063 aluminum block.

The shape of its section benefits from our years of experience in kite foiling to provide the best gliding feel while keeping the strength up and the weight down. It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular.

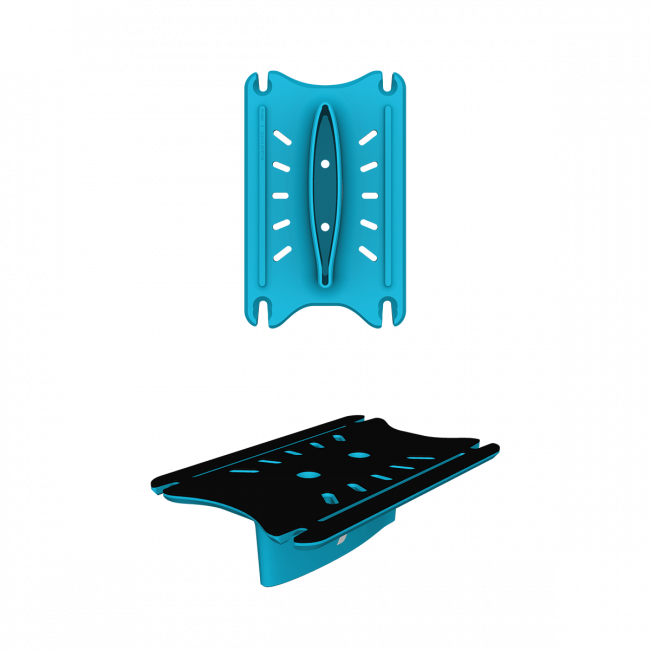

The Mast Top parts are machined out of solid blocks of 6061 aluminium. All versions are fastened to the mast through a sleeve and a two-bolt system. The accuracy of the CNC makes sure the geometry of the connection is perfect. Stainless steel inserts are used systematically to preserve the durability of the fastening connections. The Top Plate has become standard on the market and is compatible with any board featuring a Twin-Tracks system. The spacing we use for the four screws is 160×90 mm, but our latest version also features an option for 165×90 mm.

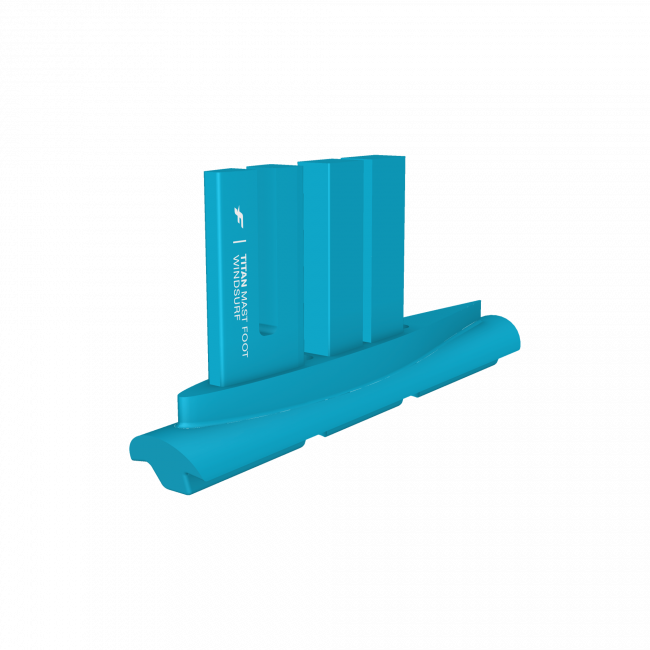

The TITAN mast foot is the connecting part that makes the F-ONE aluminium masts compatible with all TITAN fuselages and wings. It is made of superior-grade aluminum 6061, CNC machined with high precision and fully anodized. To install the TITAN mast foot, it should be inserted into the bottom end of the aluminum mast and fastened with two M6x25mm tapered head screws.
