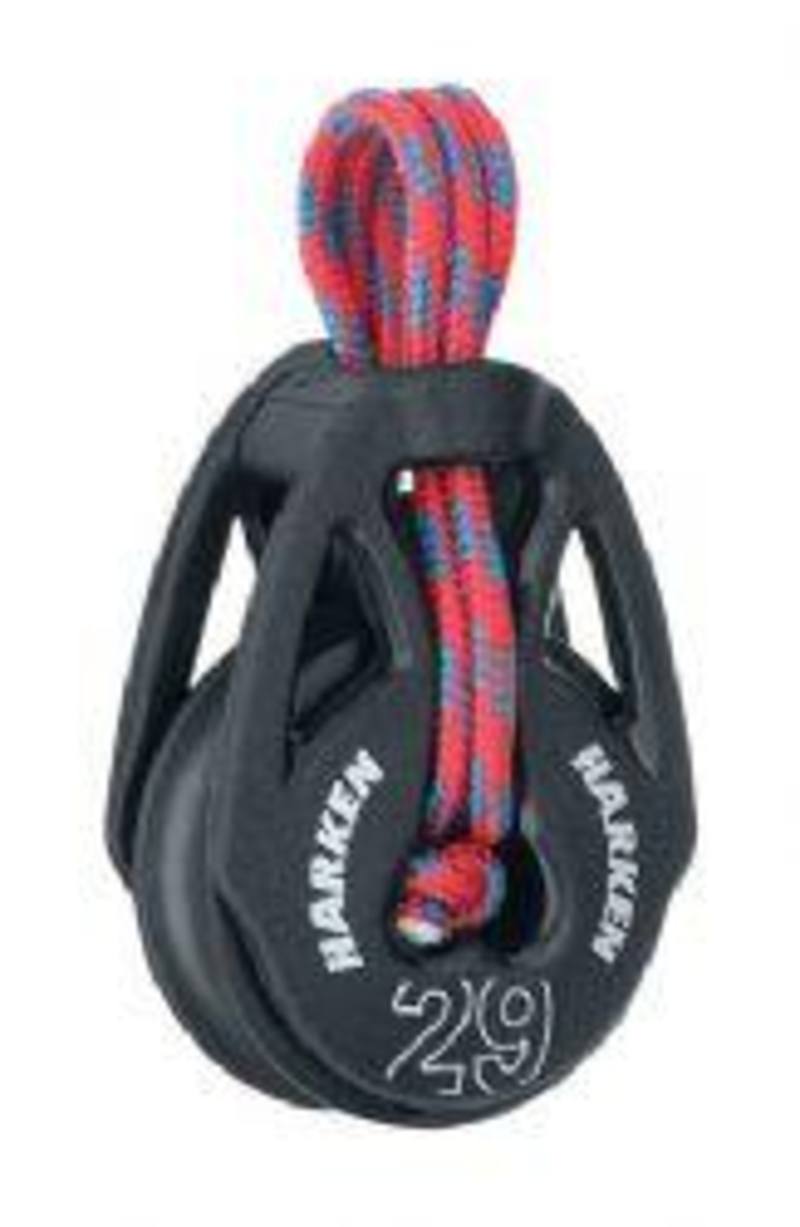

Harken 2146 T2 29mm Carbo
Ha2146
QTY
PURCHASECarbo T2™ Soft-Attach Blocks
Harken Releases Its Lightest Block Ever
Harken's Carbo T2™ is the first block with no fasteners, rivets or other metal parts to add weight. Its composite structure, applied industrial design, and new branding gives this patent-pending block a hot new look that appeals to racing sailors both young, and young at heart.
The high-strength composite T2™ is the first block with no metal shackles or rivets. It is used for traveler controls, mainsheets and vangs, cascades, bridles, and other systems where small, lightweight blocks are called for.
T2 blocks come in two styles. One uses a loop, the other a length of line. Both methods route the attachment line through the block head and sheave, decreasing the load on the sideplates and acting as a backup for the system. Soft attachments articulate to align with the load for a fair lead, reducing friction.
The composite sheave spins on ball bearings with curved bearing races for low-friction rolling. Composite sideplates are fiber-reinforced, high-strength nylon resin. Ball bearings, sheave, and sideplates are UV-stabilized for maximum lifespan.
T2 blocks come in two styles. One uses a loop, the other a length of line. Both methods route the attachment line through the block head and sheave, decreasing the load on the sideplates and acting as a backup for the system. Soft attachments articulate to align with the load for a fair lead, reducing friction.
The composite sheave spins on ball bearings with curved bearing races for low-friction rolling. Composite sideplates are fiber-reinforced, high-strength nylon resin. Ball bearings, sheave, and sideplates are UV-stabilized for maximum lifespan.
T2 with open centre
The T2 can be tied, spliced, or lashed to almost anything. Use for traveler controls, mainsheet and vang systems, cascades, bridles, and more. The T2 comes in 29, 40, and 57 mm sizes. A length of line is included.
T2 with anchor post
No knots, splices, or tools are needed. Just slide the loop through the block head and over the anchor post for a secure connection. T2 Loops come in 40 mm and 57 mm single sizes. A SK75 Dyneema® loop is included. Replacement loops available.
Easy Installation
Slide the loop through the head and over the anchor post for a secure connection.
Dimensions
| Part No. |
Description | Sheave Ø |
Length | Weight | Max line Ø |
Maximum working load |
Breaking load |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | oz | g | in | mm | lb | kg | lb | kg | ||
| T18™ | |||||||||||||
| 2698 | Single | 23/32 | 18 | 1-1/8 | 28 | 0.25 | 7.2 | 3/16 | 5 | 275 | 125 | 992 | 450 |
| T2™ | |||||||||||||
| 2146 | Single | 1-1/8 | 29 | 1-11/16 | 43 | 0.4 | 12 | 5/16 | 8 | 330 | 150 | 1000 | 454 |
| 2149 | Single | 1-9/16 | 40 | 2-1/4 | 57 | 0.9 | 25 | 3/8 | 10 | 485 | 220 | 1200 | 544 |
| 2152 | Single | 2-1/4 | 57 | 3-1/16 | 79 | 2 | 57 | 7/16 | 10 | 792 | 359 | 2380 | 1080 |
| T2™ Loop | |||||||||||||
| 2148 | Single (includes 2154 loop) | 1-9/16 | 40 | 2-1/4 | 57 | 0.9 | 26 | 3/8 | 10 | 485 | 220 | 1200 | 544 |
| 2151 | Single (includes 2155 loop) | 2-1/4 | 57 | 3-1/16 | 79 | 2 | 59 | 7/16 | 10 | 792 | 359 | 2380 | 1080 |
Use for:
Outhauls
Cunninghams
Vangs
Traveler controls
Barberhaulers
Flag halyards
replaces Harken 0351 Ti-Lite
