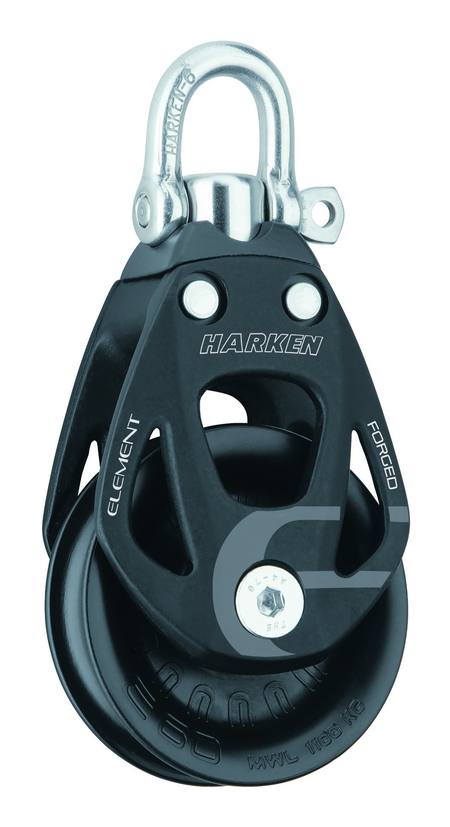

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element™s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

SPECIFICATIONS

Sheave (mm) - 60 mm

Sheave (in) - 2 3/8 in

Length (mm) - 121 mm

Length (in) - 4 3/4 in

Weight (g) - 175 g

Weight (oz) - 6.1 oz

Shackle pin (mm) - 6 mm

Shackle pin (in) - 1/4 in

Maximum line (mm) - 14 mm

Maximum line (in) - 9/16 in

Maximum working load (kg) - 1100 kg

Maximum working load (lb) - 2425 lb

Breaking load (kg) - 2200 kg

Breaking load (lb) - 4850 lb
