Carbo fiddle line features high load ball bearings with fitted races for low friction operation.

The 40mm fiddle is an excellent choice for 3:1 and 4:1 tackles on dinghy vangs and mainsheets, as well as for controls such as cunninghams and internal boom outhauls on larger boats.

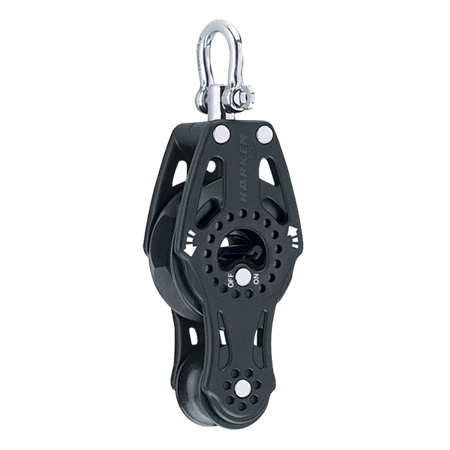

The 57mm fiddle features the Cam-Lock locking system. The patented switch allows the jaw to lock at 90% intervals, or to swivel freely.

Ratchets
The 57mm and 75mm switchable ratchets provide precise on/off control with accessible, easy to operate on/off switches on both sides of the block.

Use For
Vangs
Cunninghams
Outhauls
Mainsheet fine-tune

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.

Sheave Ø (mm)
57 mm

Sheave Ø (in)
2 1/4 in

Length (mm)
118 mm

Length (in)
4 5/8 in

Weight (g)
113 g

Weight (oz)
4 oz

Shackle pin Ø (mm)
5 mm

Shackle pin Ø (in)
3/16 in

Maximum line Ø (mm)
10 mm

Maximum line Ø (in)
3/8 in

Maximum working load (kg)
360 kg

Maximum working load (lb)
793 lb

Breaking load (kg)
1080 kg

Breaking load (lb)
2380 lb
