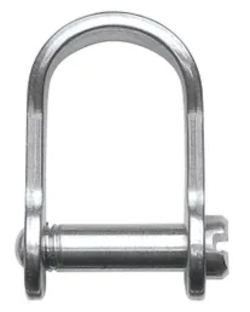

Harken Forged "D" Shackle 1/4" (6mm) Stainless Steel.

Features:

• Shackle pin diameter 6mm
• Height = 3/4"
• Width = 9/16"
• Max. working load 1650#
• Breaking load 3300#
• Electric-forged: 316 and 17-4PH stainless steel
• Polished to high luster
• Stamped-in screw-pin

Harken Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.
"D" shackles are the most common type of shackle. They are best suited for aligned attachment points.

6MM D SHACKLE SPECIFICATIONS:

Shackle pin Ø (mm)
6 mm

Maximum working load (kg)
750 kg

8MM D SHACKLE SPECIFICATIONS:

Shackle pin Ø (mm)
8 mm

Maximum working load (kg)
1380 kg

10MM D SHACKLE SPECIFICATIONS:

Shackle pin Ø (mm)
10 mm

Maximum working load (kg)
2210 kg

12MM D SHACKLE SPECIFICATIONS:

Shackle pin Ø (mm)
12 mm

Maximum working load (kg)
3230 kg
