Manta MONO Easyflight 3in1 set

Man MONO Easyflight Wing



Man MONO Front Wing



 Easyflight:  Low speed take off.

Best suited for SUPfoil but also works great with Windfoil and Kitefoil.

Provides maximum stability and control in surfing conditions.

Our number one choice for multi use foil.





MAN MONO SUP FOIL 2018 - Manta Mono hydrofoil all in one

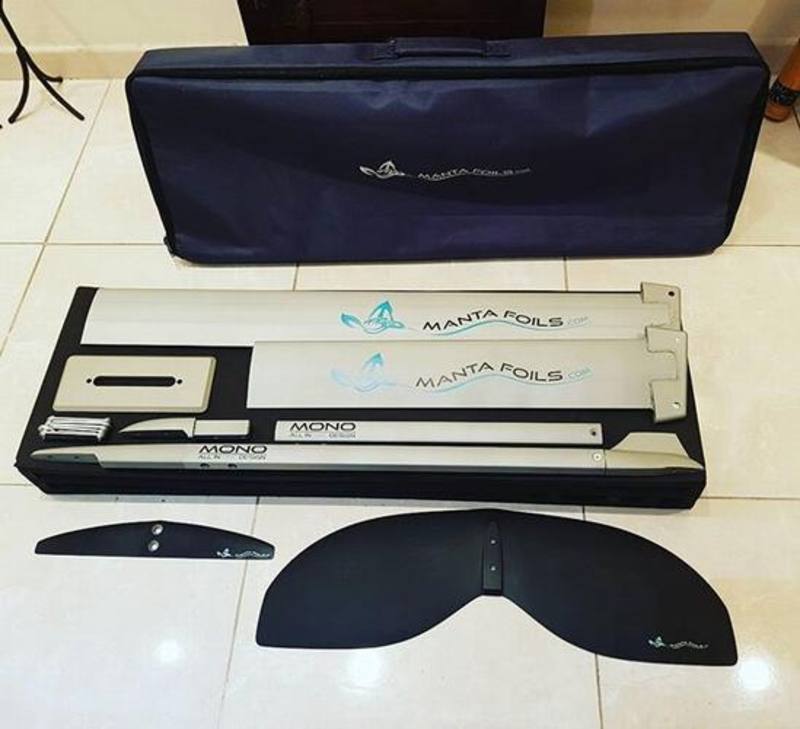

Included in 3 in 1 foil kit:

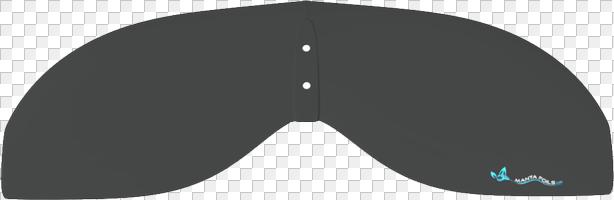

* easyflight G10 front wing
* stabilizer G10
* 86 cm &65cm mast
* standard (short) fuselage
* short & long nose

* fuselage tail
* screws set
* tef gel kit
* spacers set
* allen key set
* mantafoils bag

* Tuttle load plate and rubber protector



3 in 1
The all around kit suitable for kitefoil, supfoil and windfoil. Low speed take off. Supplied with both 86 and 60 cm masts as well as short and long noses.

The new Manta Mono 3in1-hydrofoil set contains all the bits you need to have an inspiring experience flying over the water, regardless if you go out on a Kiteboard, windsurfing or SUP. With the long and short mast you have the option to either make the flight extremly easy to control (short mast) or faster and more exciting (long mast). The long nose is for using the 3in1 as a wind-foil and the short nose is used for Kite- and SUP-foilig. That ensures the lift produced by the foil is acting underneath the rider, who is standing further on the front while Windsurfing compared to Kite- and SUP-foiling. Spacer and screws allow to adjust the angle of the stabilizer wind at the back. When it faces upward, the lift is enhanced and moves further to the front, which lifts the board earlier. Facing downwards, the stabilizer reduces the lift and higher speeds can be reached, as the centre of effort moves back. A tuttle box load plate and rubber protector is also provided, to avoid damages caused by large lateral forces acting on the fin box. The use of the load plate and protector is highly recommended for Wind-foiling and not required for Kite- and SUP-foiling.  Please note that all connections should be checked that they are secured tightly before use.  The High speed and vibration can cause connections to work lose.

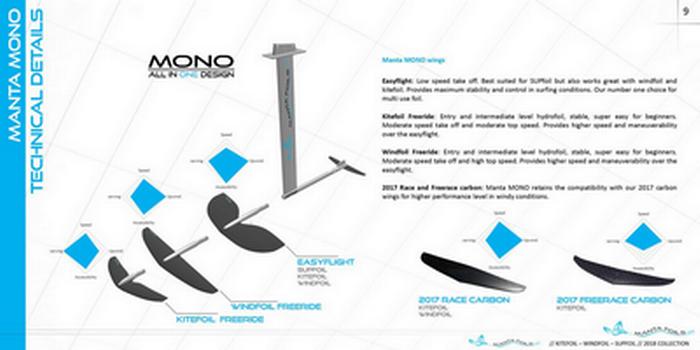

brochure_mantafoils_2018_v1_9_jpg

3in1 Info 14_12_18.JPG



To protect the fin box and board from damage caused by the lateral forces acting, when wind-foiling , a tuttle box load plate and rubber protector is also provided.

The supplied load plate distributes the load evenly on a larger area around the fin box.

manta_load_plate_ind

Above: This is how you want your gear to look after a WindFoiling session (MantaFoil with the load plate)

Below: This is how you don't want your gear to look after WindFoiling session (different brand foil without load plate, heavy impact)

              Neil Pride Board with Foil damaged
