HIGHEST PERFORMANCE WITH HIGHEST CONSISTENCY IS THE KEY TO SUCCESS!

The success of a boards performance goes far beyond that of just having a highly qualified shaper.

To create a real performance machine, the shaper must not only accept input from their team riders, but he himself must also be at the top of his game on the World Tour.

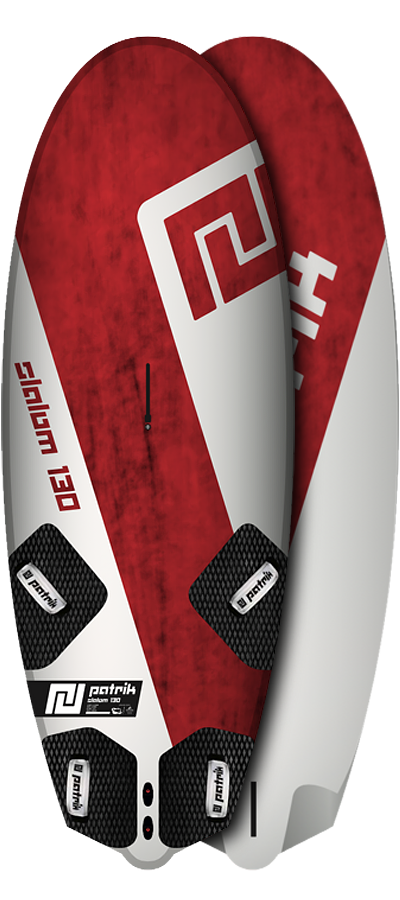

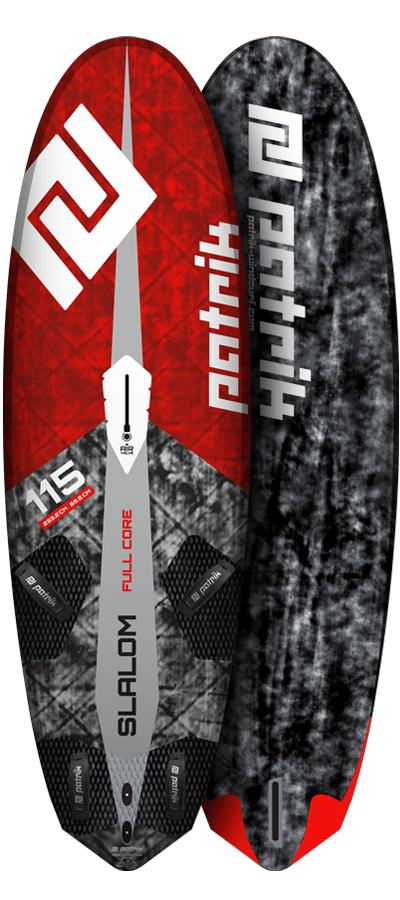

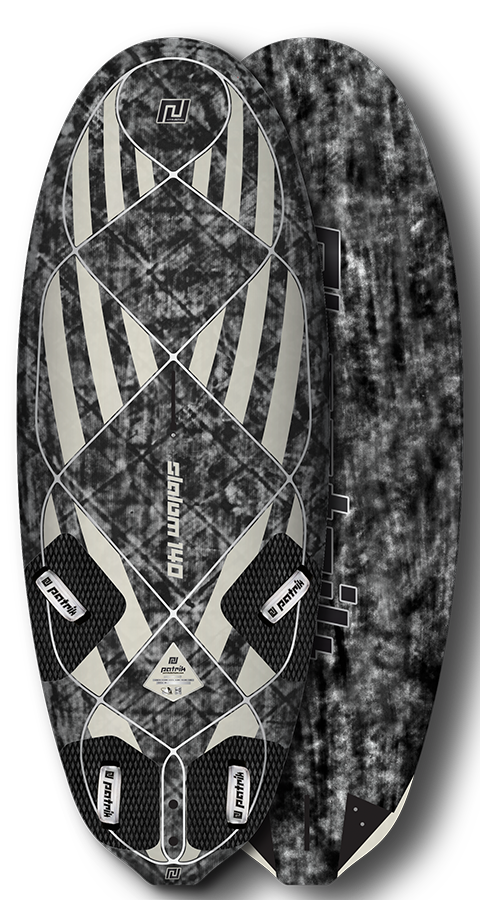

patrik 140 gbm 2019.png get_slalom130 2019.png

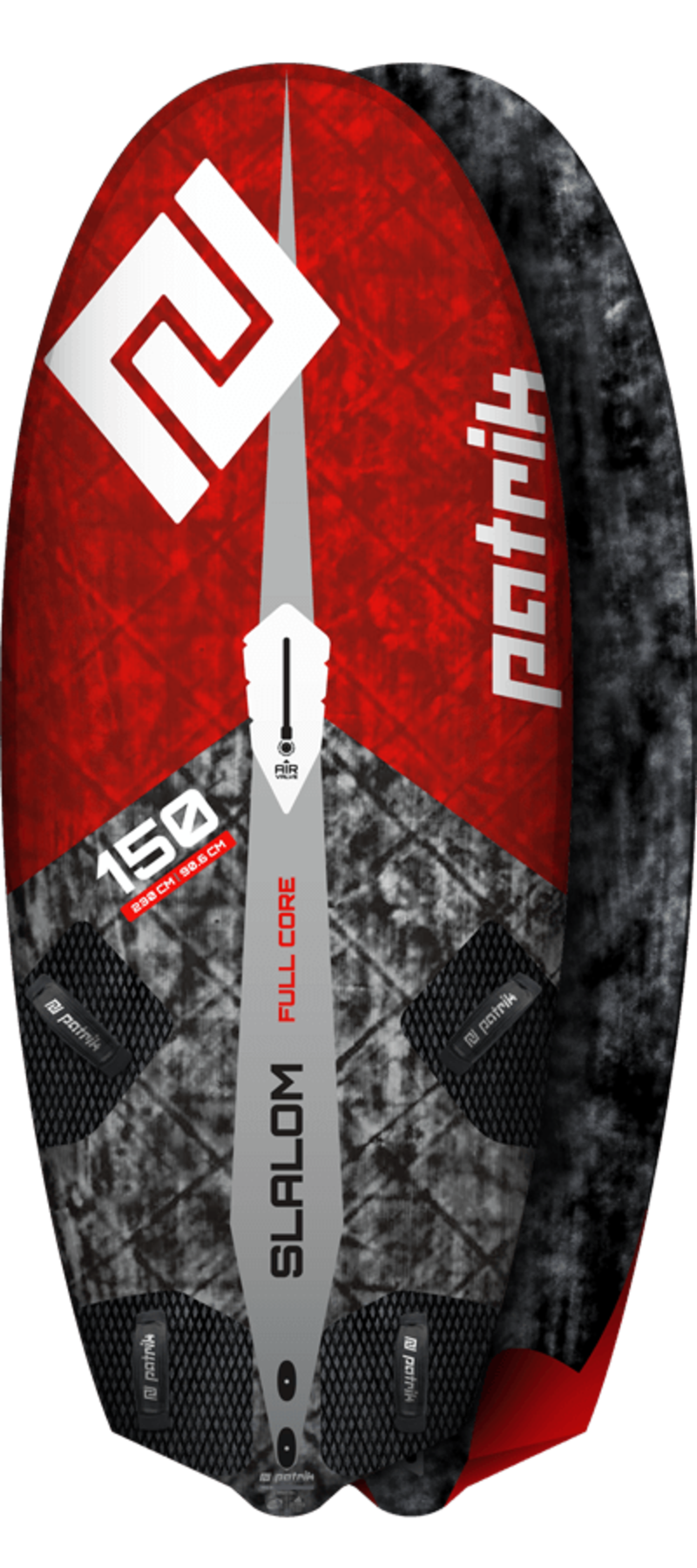

Above pictures show 3 different constructions available from left to right GBM, GET, and new 2020 combined constructions (GBM 115L and above & GET 100L and below)

This winning combination is exactly what has allowed us to personally test, develop and finely tune each size in our range to ensure that it can withstand the multitude of conditions that prevail in these locations. The construction and the shape of the board is as important as the testing environments. Through the world wide PATRIK R&D process each size is carefully crafted to perform at the highest level in any possible slalom conditions.

Alongside great products, PATRIK also support their team riders with cutting edge equipment tuning secrets, riding styles, tactics and more - an invaluable combination you will never find anywhere else!

RANGE OF USE

		Sailor Type (Weight & Size)			Sailor Skills			Ideal Wind Strength / Sailor Type			Water Conditions
	S	M	L	Entry	Advanced	Pro	Low	Med	High	Flat	Chop	Wave
	less than 70kg / less than 170cm	70-90kg /170-190 cm	more than 90kg / more than 190cm	uphaul, gliding all reaches	waterstart, strap & harness, first jibes	moves, waves, speed	less than 15 knt	15-25 knt	more than 25 knt	flatwater / chop: less than 1m	chop / wind waves: less than 2.5m	wind waves / swell: more than 2.5m
SLALOM 85	X	X	X			X		S	S/M/L	X	X
SLALOM 90	X	X	X			X		S	S/M/L	X	X
SLALOM 95	X	X	X			X		S/M	S/M/L	X	X
SLALOM 100	X	X	X			X	S	S/M	S/M/L	X	X
SLALOM 115	X	X	X			X	S	M/L	M/L	X	X
SLALOM 125	X	X	X			X	S/M	M/L	L	X	X
SLALOM 130	X	X	X			X	S/M/L	L		X	X
SLALOM 140		X	X			X	M/L	L		X	X
SLALOM 150			X			X	M/L	L		X

CONSTRUCTION

115, 125, 130, 140, 150 – The full deck Carbon Biax with the full Carbon UD bottom is the construction combination to have a lightest and stiffest board for maximum early planning, acceleration and riding agility.

85, 90, 95, 100 – The full deck Carbon Biax with the full fiberglass bottom is the combination of lightweight, stiffness and flex for early planning, acceleration and control.

slalom 2020 shore close.jpg slalom 2020 with sail.jpg

DIMENSIONS

	LENGTH [MM]	WIDTH [MM]	VOLUME [LITRE]	TAIL WIDTH AT 300 [MM]	NOSE WIDTH AT 2000 [MM]	WEIGHT (+/-6%) [KG]	STRAP OPTIONS & INSERT HOLES	STRAP QUANTITY	FIN BOX	APPROVED SERIES
SLALOM 85	2370	570	85	357	446	5,51	6X4	4	Tuttle Box	PWA / ISAF
SLALOM 90	2335	595	90	396	464	5,78	6X4	4	Tuttle Box	PWA / ISAF
SLALOM 95	2314	622	95	411	482	5,87	6X4	4	Tuttle Box	PWA / ISAF
SLALOM 100	2330	645	100	421	501	5,94	6X4	4	Tuttle Box	PWA / ISAF
SLALOM 115	2332	695	115	488	556	6,46	6X4	4	Tuttle Box	PWA / ISAF
SLALOM 125	2302	772	125	544	594	7,24	6X4	4	Deep Tuttle Foil Box	PWA / ISAF
SLALOM 130	2288	808	130	564	607	7,42	6X4	4	Deep Tuttle Foil Box	PWA / ISAF
SLALOM 140	2288	848	140	606	643	7,71	6X4	4	Deep Tuttle Foil Box	PWA / ISAF
SLALOM 150	2300	906	150	TBC	TBC	7,98	6X4	4	Deep Tuttle Foil Box	TBC

slalom 2020 _2_.jpg slalom 2020 racing.jpg

RANGE OF USE SAILS & FINS

Boards come with no fin

	BEST SAIL SIZE [M2]	SAIL RANGE [M2]	REC. FIN SIZE [MM] – FIN NOT INCLUDED	FIN RANGE [MM]
SLALOM 85	5.0-6.3	4.0-7.0	Carbon 300	260-340
SLALOM 90	5.6-6.8	4.5-7.0	Carbon 320	280-350
SLALOM 95	5,6-7,0	5,0-7,3	Carbon 340	280-360
SLALOM 100	5.8-7.3	5.5-7.8	Carbon 350	300-380
SLALOM 115	6.8-8.2	6.2-8.6	Carbon 390	350-410
SLALOM 125	7.3-8.6	6.8-9.0	Carbon 430	400-460
SLALOM 130	7.8-9.2	7.3-9.5	Carbon 450	420-480
SLALOM 140	8.4-9.6	7.8-10.0	Carbon 470	440-520
SLALOM 150	8.6-10.0	8.0-10.0	Carbon 490	450 – 540

Construction

A slalom board needs to be lightweight for early planing, acceleration, top speed and reactiveness, but it also needs to be controllable at top speed in choppy waters and flex for smooth gybes. On the deck for all boards we use a full layer of Biax-Carbon, which reduces the twist but still maintains the flex required. A full Carbon board is very stiff and often in rough conditions the bottom of the board will impact hard on the water, which results in the user experiencing a very nervous-like feeling. Concaves on the bottom can make the board feel softer, but this alone is not enough in overpowered conditions. Concaves in combination with a softer bottom construction help to absorb upcoming chop and provide more control. Wood contains the right characteristics, but would be too heavy and lacks durability. To guarantee a long lasting product, and still have the soft bottom, we decided to use PVC in combination with Glass 90°-90° for 100 litre boards and below. To maintain our uniform graphic identity, the glass on the bottom is laminated with black resin. The finishing is white coated and sanded back by around 75%. For 115 litres and above they have full UD Carbon bottom for lightest and stiffest board for maximum early planning, acceleration and riding agility.

Technology - Composite Semi Custom Sandwich

Core Material - EPS (Styrofoam)

Sandwish Material - PVC Sheet

Final Lamination - Deck: Full Carbon Biax 45°-45° (Black Resin) / Bottom: 100 litres and below Full Glass 90°-90° (Black Resin) 115 litres and above UD carbon

Shape Details please see video to the right of Patrik going through the details of the 2020 shapes

DIMENSIONS	Length (mm)	Width (mm)	Volume (Litre)	Tail Width at 300mm	Nose Width at 2000mm	Strap Quantity	Fin Box
Slalom 85	2370	570	85	357	446	4	Tuttle
Slalom 90	2335	595	90	396	464	4	Tuttle
Slalom 95	2314	622	95	411	482	4	Tuttle
Slalom 100	2330	645	100	421	501	4	Tuttle
Slalom 115	2332	695	115	488	556	4	Deep Tuttle Foil Box
Slalom 125	2302	772	125	544	594	4	Deep Tuttle Foil Box
Slalom 130	2288	808	130	564	607	4	Deep Tuttle Foil Box
Slalom 140 Slalom 150	2288 2300	848 906	140 150	606 TBC	643 TBC	4 4	Deep Tuttle Foil Box Deep Tuttle Foil Box
