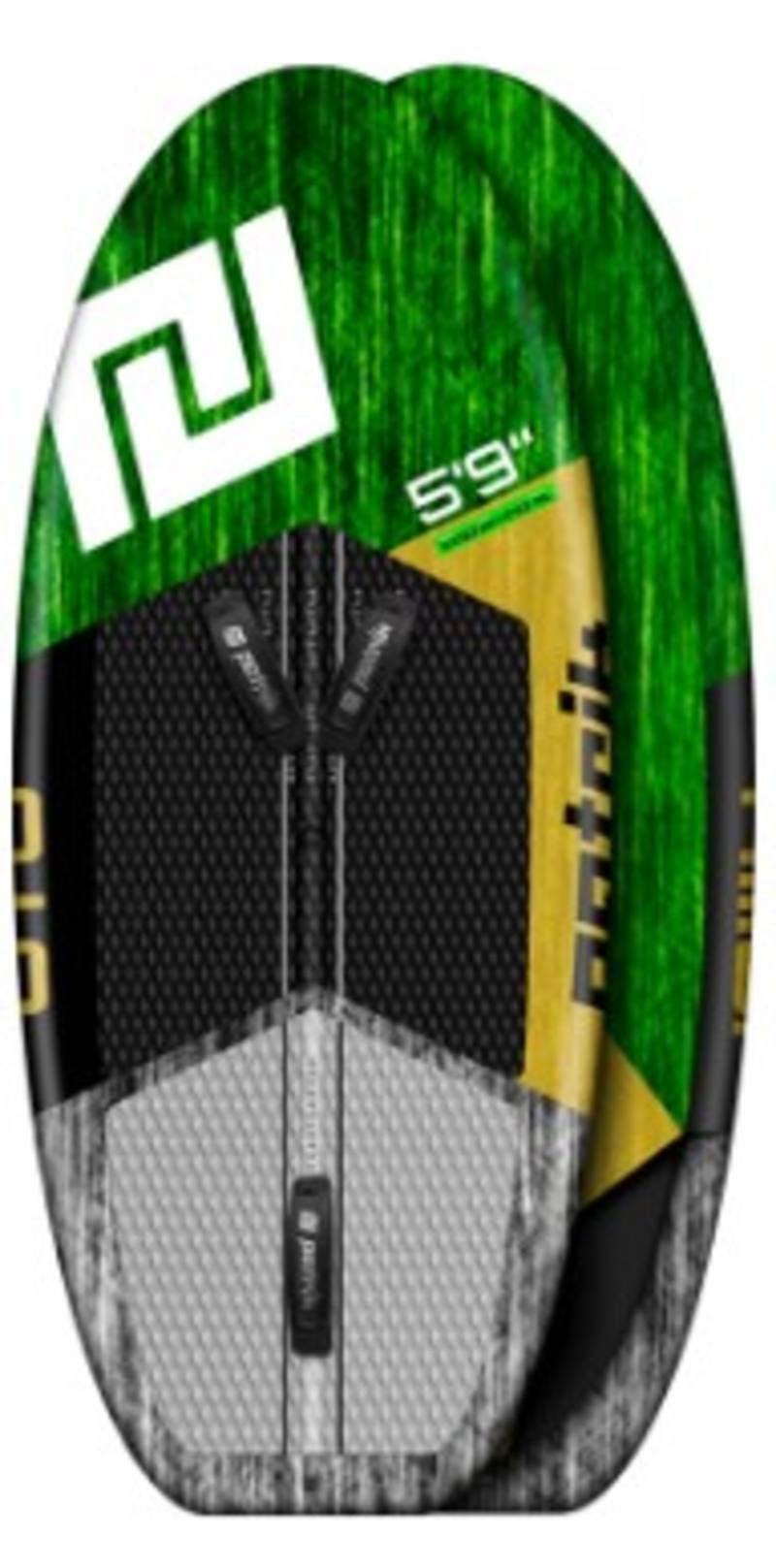

Patrik Wing AIO 115L 5,9
PD WING-AIO115
QTY
PURCHASEA.I.O. stands for “All In One” and those shapes look as if they were forged in another time!
Exactly this is what PATRIK stands for and we could not be prouder that in Germany they are praised as the “Tesla of wing boards”!
Those innovative all-in-one boards are built to last!
Those boards can be used for all sorts of foil sports from surfing to tow-in, wake, SUP, Wing, and in the two windsurf options also windsurf. An innovative two-step side shape gives the board unique stability and maneuverability.
The full-carbon sandwich PVC construction makes those boards really stiff and consecutively very high performance. On the A.I.O. you feel your foil like you have never felt it before.
We decided to give you really all the options with our A.I.O. range which is why all the boards have both fin box options the Foil deep turtle and also the US plate system.
The A.I.O. is a perfect tool for all dedicated watermen to get the highest performance!
1st Bastien Escofet
2nd Francesco Cappuzzo
3rd Camille Bouyer

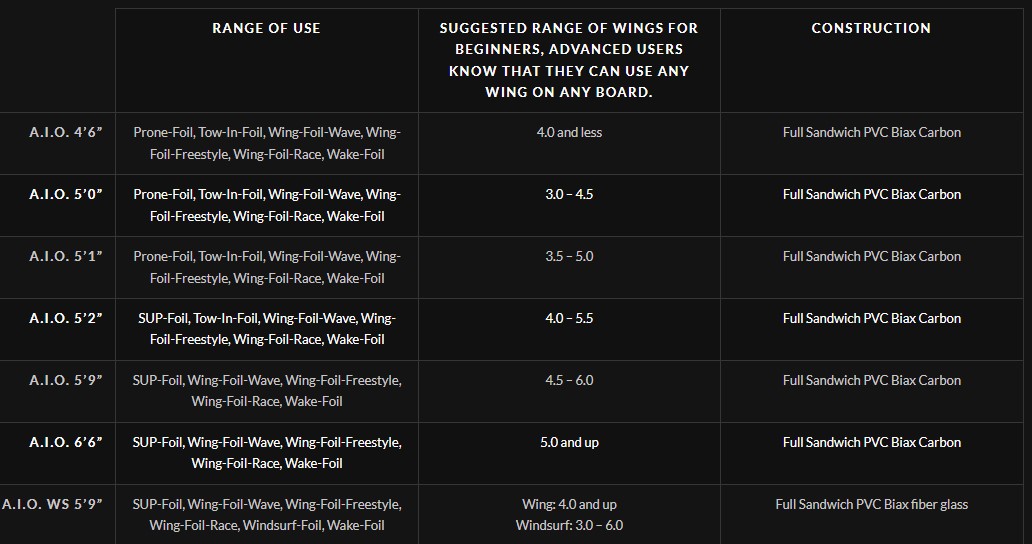

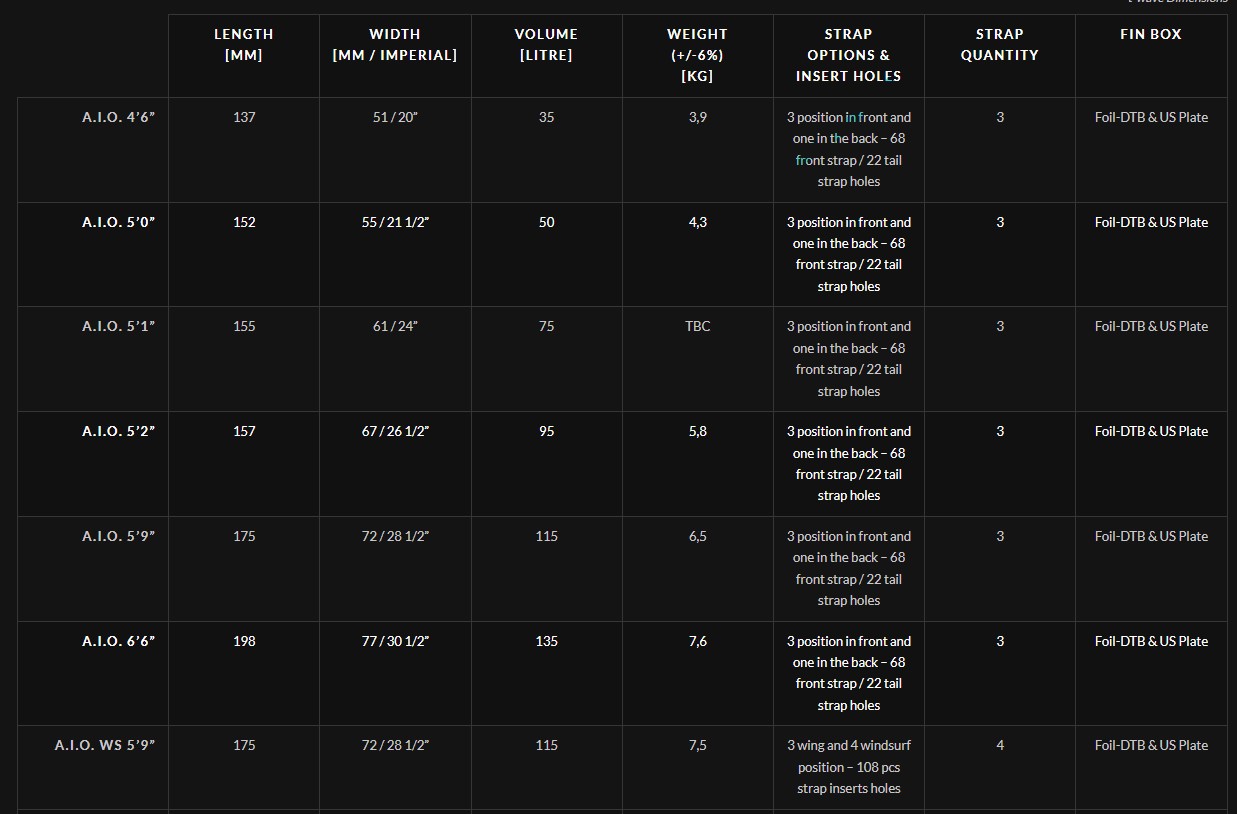

SIZES:
- 4’6” / 5’0” / 5’1”: With the three smaller sizes we are covering Wing-Foil, Surf-Foil, Wake-Foil and Tow-In-Foil.
- 5’2”: Also covering Wing-Foil, Surf-Foil, Wake-Foil and Tow-In-Foil but additionally also to be used for advanced Foil-SUP.

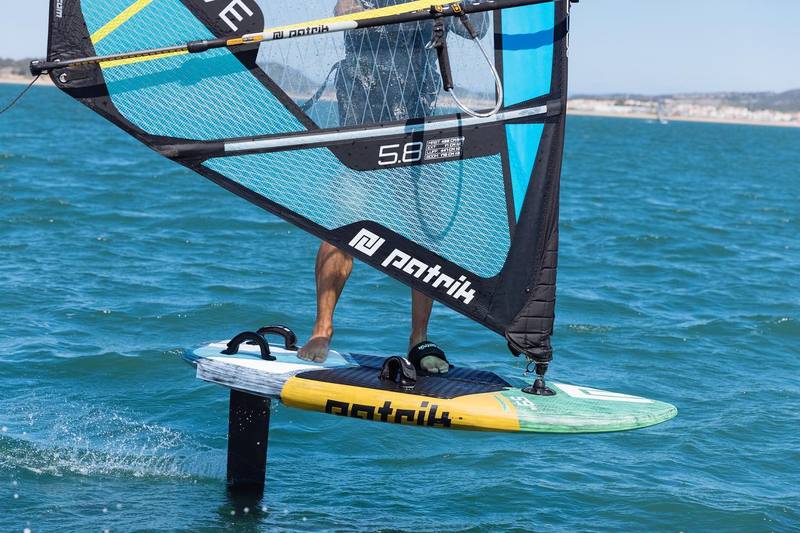

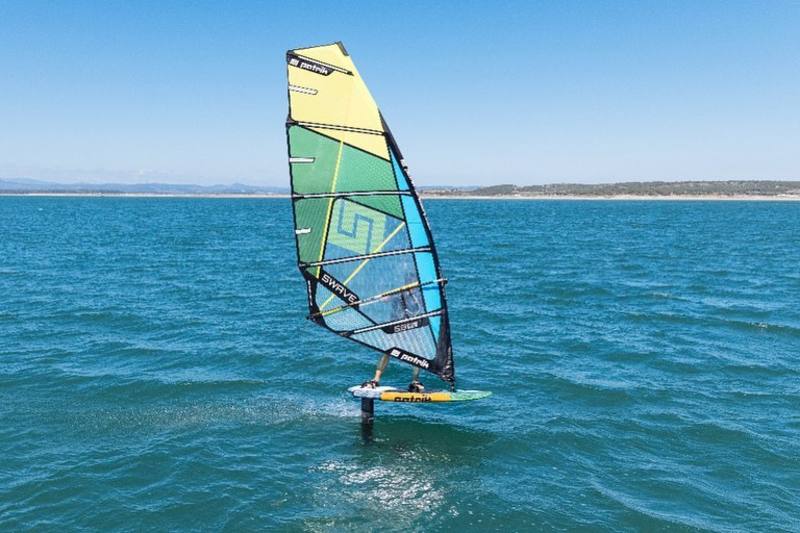

- 5’9” / 6’6” and 5’9”-WS / 6’6”-WS: The wider width is eliminating the possibility to Surf-Foil but it opens up the range of use with Foil-SUP and windsurfing for the “WS” models.
SHAPE:
- Rail: For the 4’6”/5’0”/5’1” we designed a “step rail” for a good grip while duck diving and to reduce the volume to be able and sink the board for more stability when it is rough and windy. It is hard to kneel on a board when it is wavy and the narrow shape also permits low flying tight turns with a shorter mast when it is shallow. The other sizes have a flat-beveled nose entry to reduce drag and avoid the water sucking up the rail. The round boxy rail throughout the middle of the board gives the most volume close to the bottom and makes the shape stable to kneel on it.
SHAPE:
- Cutouts: For easier and quick take-off the trick is to find the right reduction of tail volume to sink and position the front wing with a better angle of attack. The sharp edges around the tail are essential to have clean water flow release and reduce the drag when increasing/maintaining speed gliding on top of the water for take-off and touch down.
- Bottom Shape: After testing, we choose less concave depth to avoid the board dragging through the water too much. We, therefore, compromised a bit softer touch-down against quicker take-off, more acceleration and speed, and less drag with more release after touch down.
- EVA (Deck Pad): A full deck EVA with an indicated bump to quickly see and feel the center of the board.
- Finbox: No matter if you choose to shred waves, pull freestyle moves, compete in races or simply cruise along we offer on all our sizes the Deep-Tuttle Foilbox and the 10” US-Tracks.
- Inserts: With so many different foil setup options the feet position is crucial and with 68 possible holes at the front foot and 22 holes at the back foot we offer any strap position needed.
- Leash Plug & Fin-Handle: Secure your board with a wrist- or leg-leash attached to the leash plug at the tail. For strength & performance reasons we offer a Grab-Handle-Fin to carry the board which is fixed with the “FCS-System” on the bottom of the board (size 5’2” and bigger).
