Point 7 Extensions - CARBON

P7 SDM & RDM Carbon


Please choose an option:




LIGHT, STRONG, SMART.

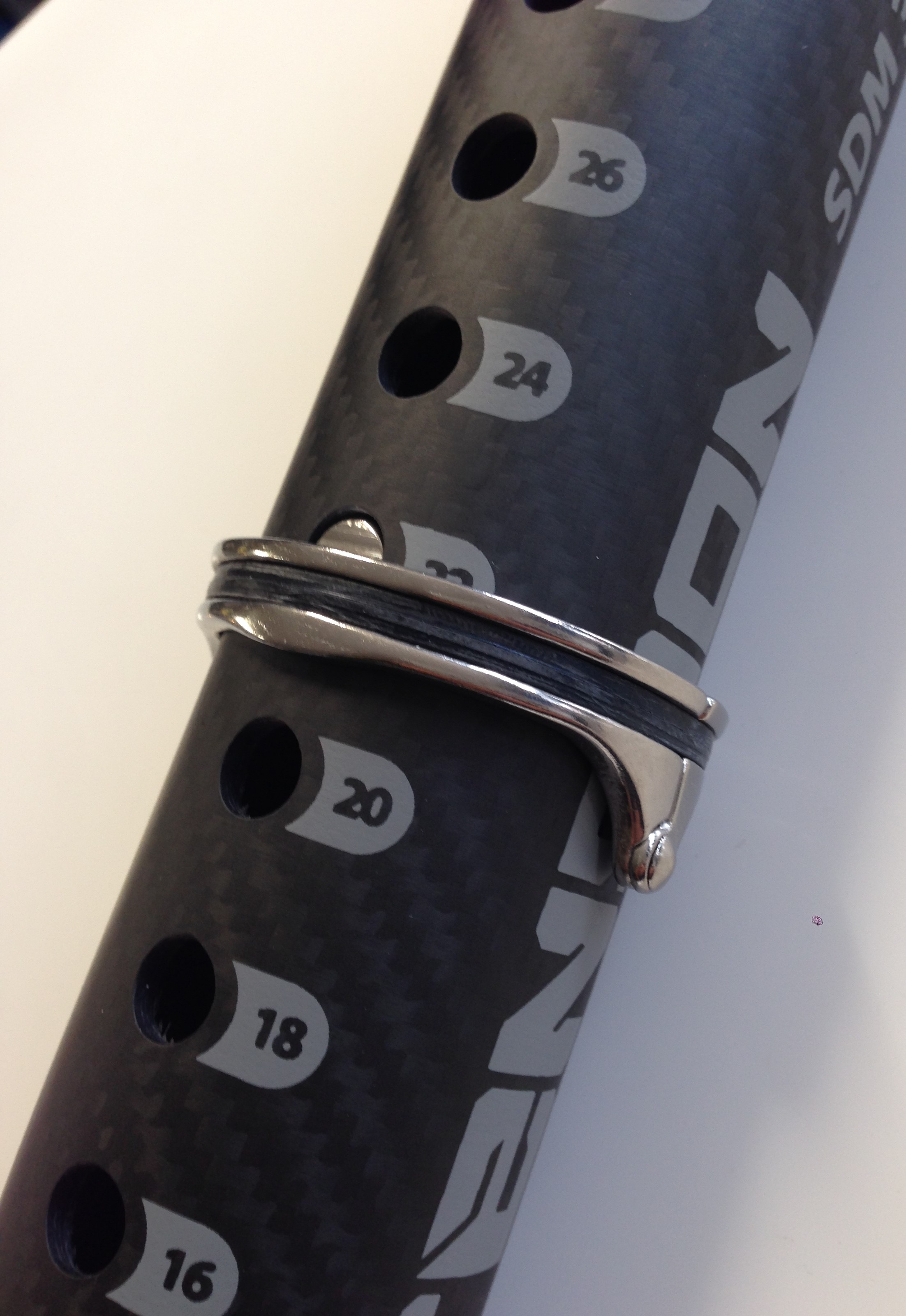

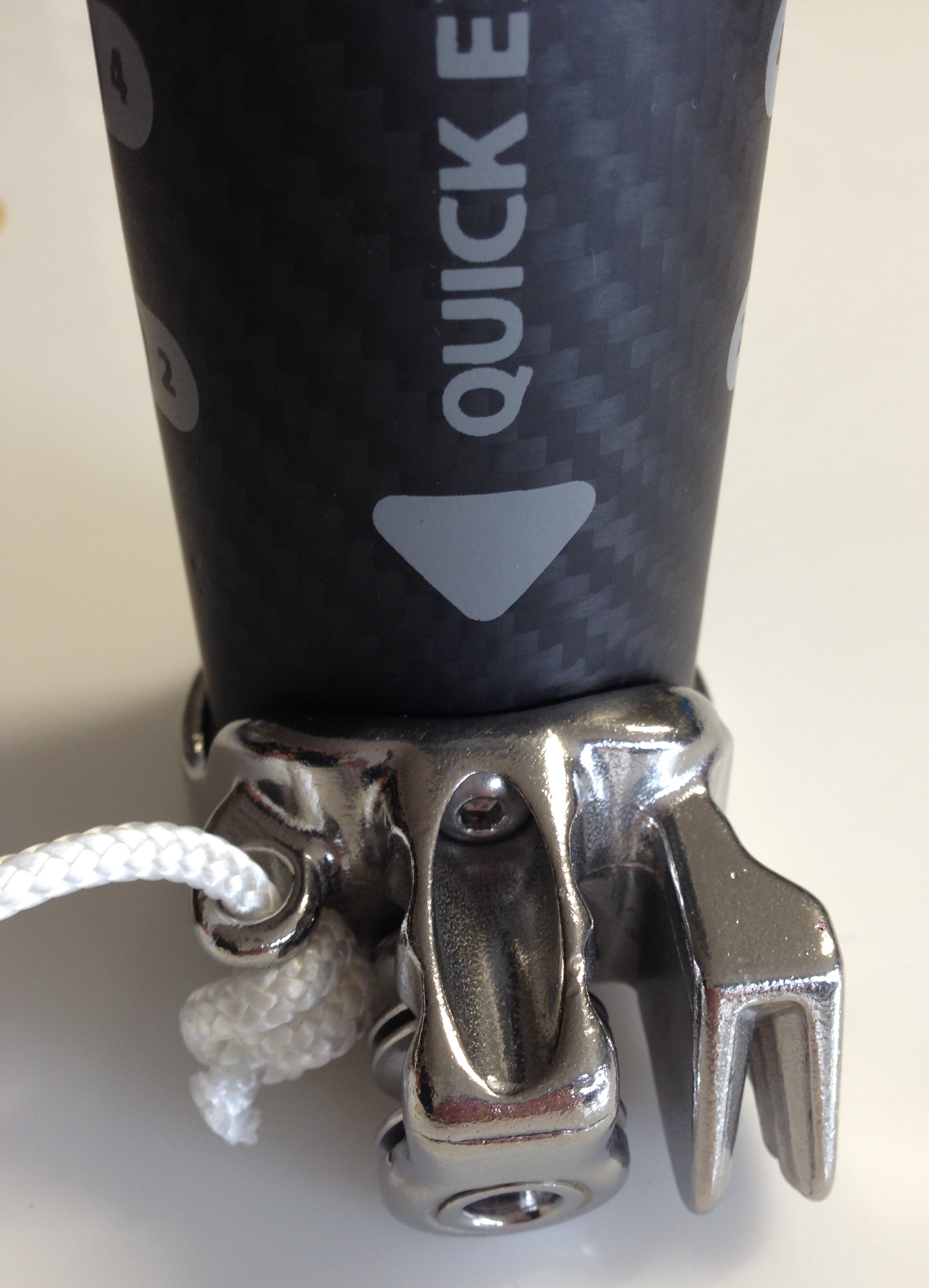

     img_1067 _2_.jpg     img_1068 _2_.jpg





Having the right tools, is half the work done.

The Point-7 extensions are based on a very simple indestructible system that is quick and simple to use and allows for effortless downhaul, even on very big sails.
The pulley and cleat system is attached directly onto the aluminium tubing, with no crossing lines. With the brass rollers, downhaul efforts are reduced to the absolute minimum.
The extension tubes are made with strong T8 grade aluminium and are available in lengths of 32 cm/48 cm with adjustment increments for every 2cm. The extensions can be sailed at the full 32cm or 48cm extension heights and are supplied with the original Marlow 3.8mm Formuline rope.

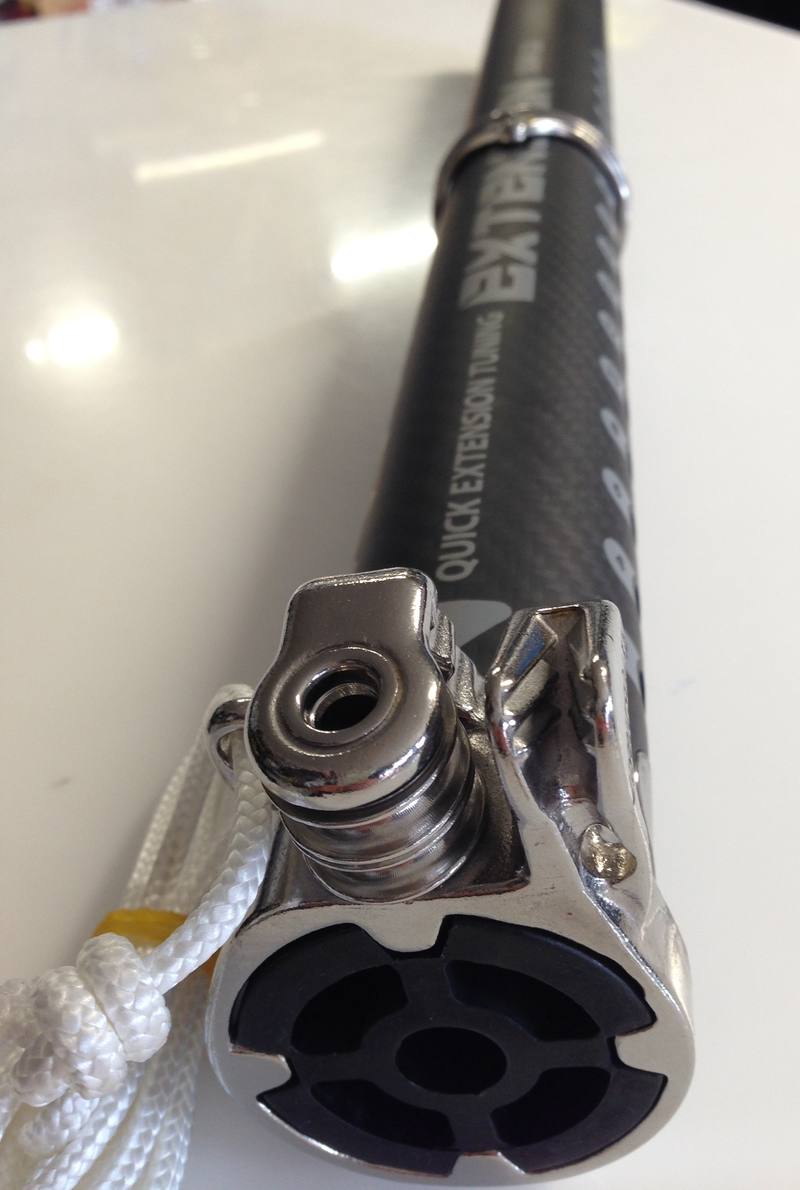

img_1065 _2_.jpg

LIGHT, STRONG, SMART.

BUY NOW FIND A DEALER

A carbon extension needs to offer the right stiffness to match the luff curve of the rig and not just the idea of a lighter product against aluminum. The Point-7 extensions are based on a very simple indestructible system that is quick and simple to use and allows for effortless downhaul.

The new pulley and cleat system are attached directly onto the aluminum tubing, with no crossing lines. The pulleys being perfectly in line with the sail pulleys, allows the rope to thread through a simple and logic loop. With the oversized rollers and free rope from the cleat, the downhaul efforts are reduced to the absolute minimum.

The extension tubes are made with strong a strong grade carbon and are available in lengths of 28cm/44 cm with adjustment increments for every 2cm. The extensions can be sailed at the full 28cm or 44cm extension heights and are supplied with the original Marlow 3.8mm Formuline rope.



POINT-7 - Threading the rope through the new P7 extension. | Facebook



Quick functionality points on the base system:

  • Double Cleat for rigging on both Starboard and Port tack side.
  • Guided Cleat for easy rope blocking
  • 3 rollers to use also 4 pulley systems on the sail.



DIAMETER TYPE MATERIAL WEIGHT (+-5g) STARTING LENGHT (cm) INTERVALS(cm) MAX LENGHT(cm) ROLLERS IDEAL RIGGING FOR BOTH TACKS FORMULINE ROPE
SDM 48 CARBON 565 2 2 48 2 YES YES
RDM 44 Carbon 515 2 2 44 2 yes yes
SDM 32 Carbon 508 2 2 32 2 yes yes
RDM 28 Carbon 458 2 2 28

TECHNICAL SPECS

DIAMETER TYPE MATERIAL WEIGHT (+-5g) STARTING LENGHT (cm) INTERVALS(cm) MAX LENGHT(cm) ROLLERS IDEAL RIGGING FOR BOTH TACKS FORMULINE ROPE PRICE
SDM 48 CARBON 565 2 2 48 2 YES YES € 179,00
RDM 44 Carbon 515 2 2 44 2 yes yes € 179,00
SDM 32 Carbon 508 2 2 32 2 yes yes € 179,00
RDM 28 Carbon 458 2 2 28
