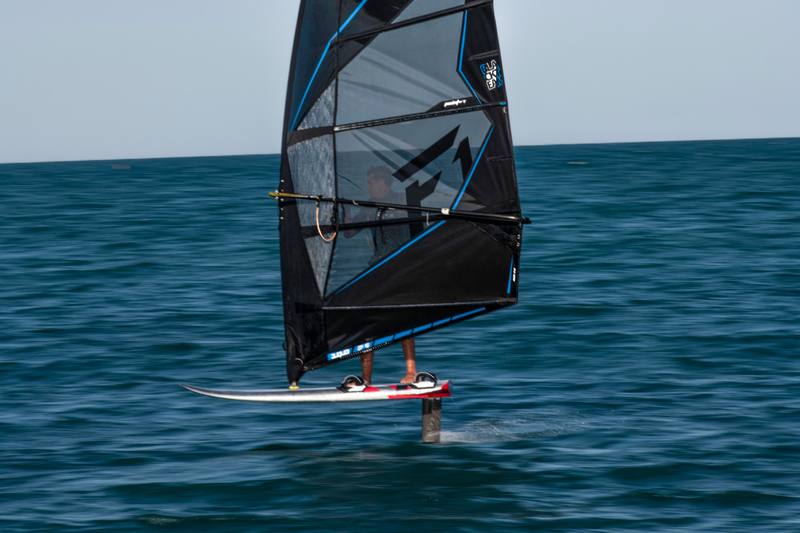

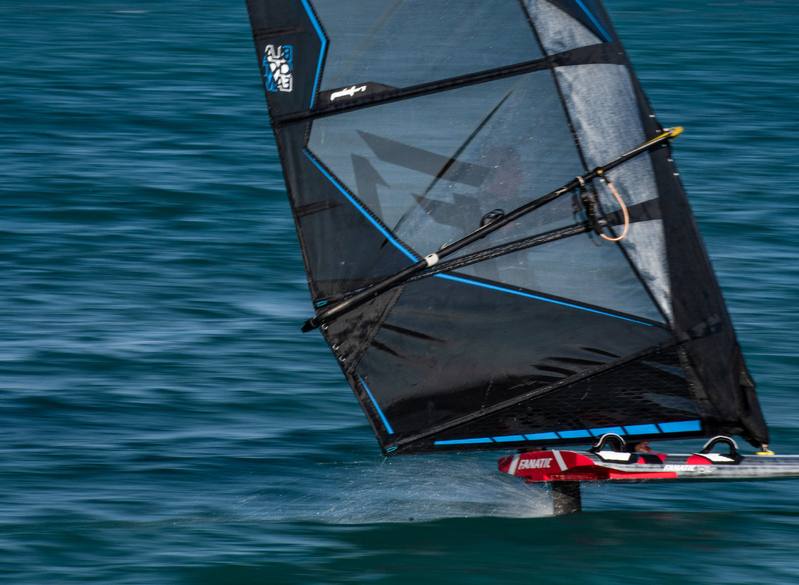

F1Fw



Designed for

Ready to blast upwind/downwind. A non-compromise Foil Formula sail for real addicted race foilers who are looking for an extra edge

Can it be used on a traditional fin? Everything can work, but it will not give the power and performance a normal fin board requires.



• Flatter entry profile, deepening down just behind the mast, to have a fast entry on the upwind reaching. Deepening further when releasing outhaul for the full downwind. 80cm mast sleeve width to keep the profile as most aerodynamic for tight fast angles. 7 battens, 3cams are now a trademark in the Point-7 racing sails.



• High aspect outline, small head to reduce drag. Small winglet head for efficient aerodynamics and light feel.



• Short boom to fit the foiling power and handling balance needs. 4 positioning of eyelets to select stance according to racecourse.



• Re-worked leech to flatten out the central profile, and a closed middle leach to optimize upwind angle.



• Low cut lower base, to completely close the gap on the board on a foil upwind\downwind stance.



• Slight upper leach opening to release wind and increase speed especially on the downwind angle.



• 5mil Anti UV- X-ply base panel for protection from accidents.
• Anti-UV transparent grey window to have a 100% Anti UV-Monofilm sail.
• X-ply luff sleeve for fast reflex,
• Lower Dacron wide sleeve for extra profile.
• Assembled in the 4mil Anti-UV Laminate
• X-ply alternate batten pockets for lighter weight and reflex.



Size	Luff	Mast	Extention	Boom Trim Low Eyelets	Boom Low Eyelets	Boom Trim High Eyelets	Boom High Eyelets	KG (+-5)	Battens	Cams	Tack Strap	Clew	SDM Mast	Carbon+ Boom	Harness Lines	Adjustable Outhaul
9.0	552	550	0	226+-2	228	228+-2	232	6.0	7	3	Yes	1	K100	220	Vario	Yes
10	578	570	10	232+-2	234	232+-2	236	6.6	7	3	Yes	1	K100	220	Vario	Yes

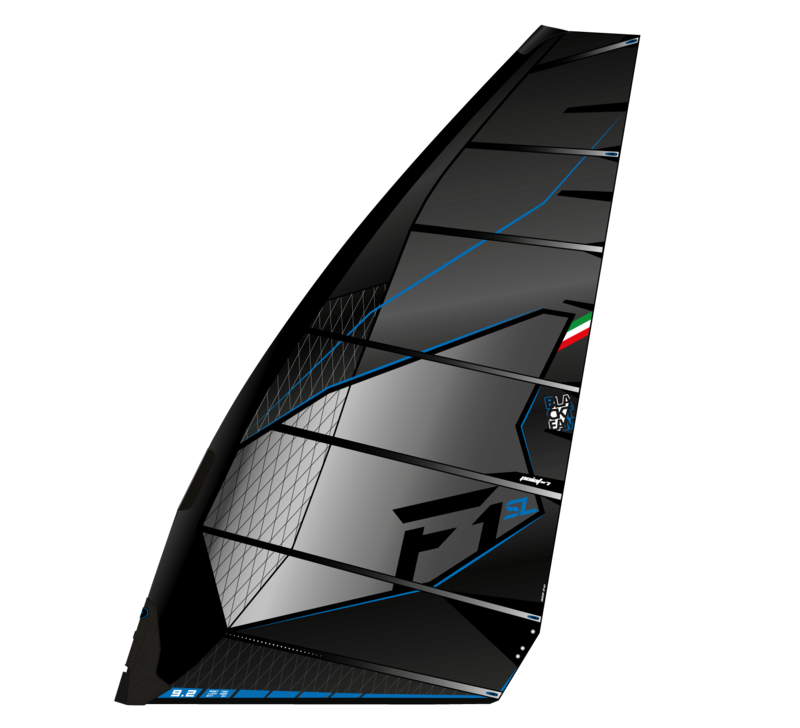

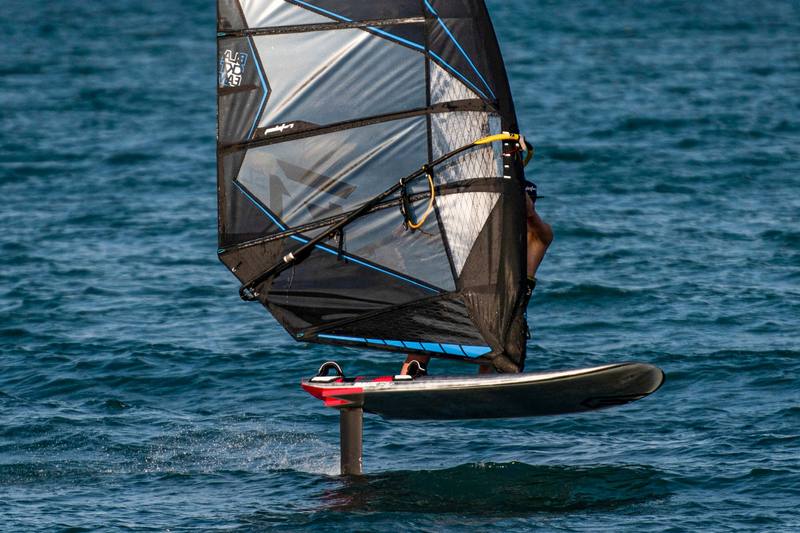

F1SL



F1SL  Flying Slalom Dynamics

9.0, 7,7 and 6.7 are the slalom sizes for foiling. Meeting the Pwa requests where foiling will be run on a slalom foil courses in suitable foil conditions. The sail derives from the base of our AC-One, Pwa world champions slalom sail.





Designed for

 Meeting the Pwa requests where foiling will be run on a slalom foil courses in suitable foil conditions. The sail derives from the base of our AC-One, Pwa world champions slalom sail.



Can it be used on a traditional fin? The F1 can be used on wider slalom boards as a compromise. Our AC-One remain our pure dedicated pure Slalom sail.





• The original front deep profile from the AC-One is kept the same. 7 battens, 3cams are now a trademark in the Point-7 racing sails.



• A batten set up, to flatten out profile where not needed one all the way to the exiting edge for taking out power not needed on the foil and delete any drag.



• The outline is high aspect.



• Shorter lower base cut to fit fast jibing on a foil board.



• Short boom for control, no clew cut out and 4 eyelets position to fit the different power of foils, winds, and different racecourses.



• Small winglet head for efficient aerodynamics and light feel.



• 5mil Anti UV- X-ply base panel for protection from accidents.
• Anti-UV transparent grey window to have a 100% Anti UV-Monofilm sail.
• X-ply luff sleeve for fast reflex,
• Lower Dacron wide sleeve for extra profile and comfort.
• Assembled in the 4mil Anti-UV Laminate
• X-ply alternate batten pockets for lighter weight and reflex.

Size	Luff	Mast	Extention	Boom Trim Low Eyelets	Boom Low Eyelets	Boom Trim High Eyelets	Boom High Eyelets	KG (+-5)	Battens	Cams	Tack Strap	Clew	SDM Mast	Carbon+ Boom	Harness Lines	Adjustable Outhaul
6.7	463	460	4	190+-4	194	200+-2	202	6.0	7	3	Yes	4	K100	170	Vario	Yes
7.7	499	490	12	216+-2	218	222+-2	224	6.6	7	3	Yes	4	K100	190	Vario	Yes
9.0	552	520	32	226+-2	228	226+-2	230	7.5	7	3	Yes	4	K100	220	Vario	Yes
