Racing Junior Mk1 with becket -anodised
CL704
QTY

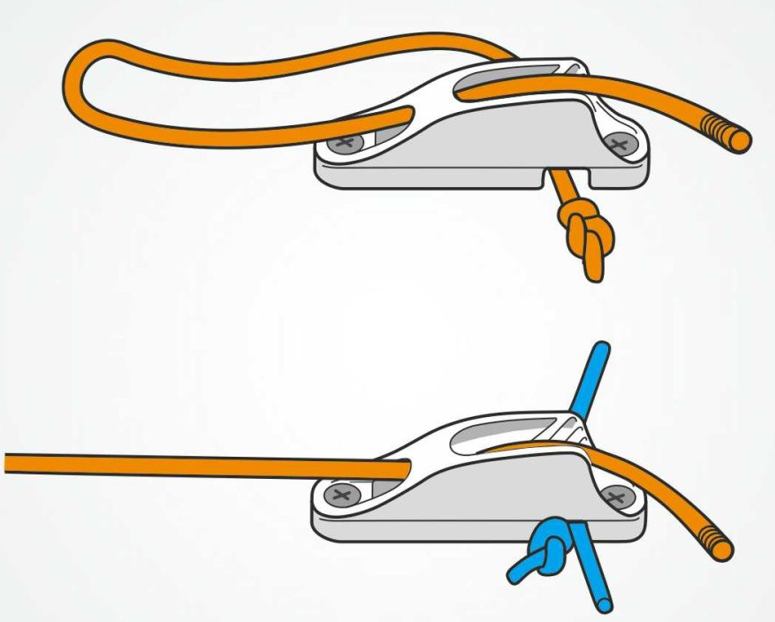

PURCHASEThe becket holds the end of the rope under the cleat to allow rigging with a 2:1 advantage. Becket also holds shockcord & bungee. No need for extra parts. Ideal for Cunningham adjustment. Use as a deck cleat or fit onto masts, booms and curved surfaces.
CL704AN has a hard anodised finish to give a hard wearing surface.
| Technical Details | Metric | Imperial | |
|---|---|---|---|
| Rope Diameter |  |
3 - 6mm | 1/8 - 1/4" |
| Material |  |
Aluminium | Aluminium |
| Hole Centres |  |
66mm | 2 5/8" |
| Length |  |
82mm | 3 1/4" |
| Width |  |
18mm | 11/16" |
| Height |  |
24mm | 15/16 |
| Bolt Size |  |
M5 | #10-24. 3/16" |
| Screw Size |  |
4.8 | No 10 |
| Weight |  |
34gms | 1.2oz |
