MEET THE ATLAS 2. SAIL THE FUTURE.

SIZE:    Height:  110mm x Width  90mm  x Depth  10mm

We set out to create an instrument that would improve the on-water experience for sailors ranging from hardcore racers to recreational sailors. The Atlas 2 is an all-in-one instrument, featuring highly precise L1+L5 dual-band GPS, a magnetic compass, heel and trim measurement, and more. Alone, the Atlas 2 is a huge step forward in small boat instruments.

The Atlas 2 also supports wireless links to select wind and water sensors, allowing a lightweight, wire-free experience, or a backup instrument on keelboats. All of this data is displayed on a vibrant screen, both day and night, and recorded in the data log for analysis.

The Atlas 2 has over 100 hours of battery life, can easily be taken from boat to boat, and offers customizable displays to show what you want to see on the water. Class-compliant modes restrict the features of the Atlas so that it can be used while racing in almost any class, allowing a single instrument to reach a wide range of sailors. Join the many sailors who have made the switch: try the Atlas 2 today!

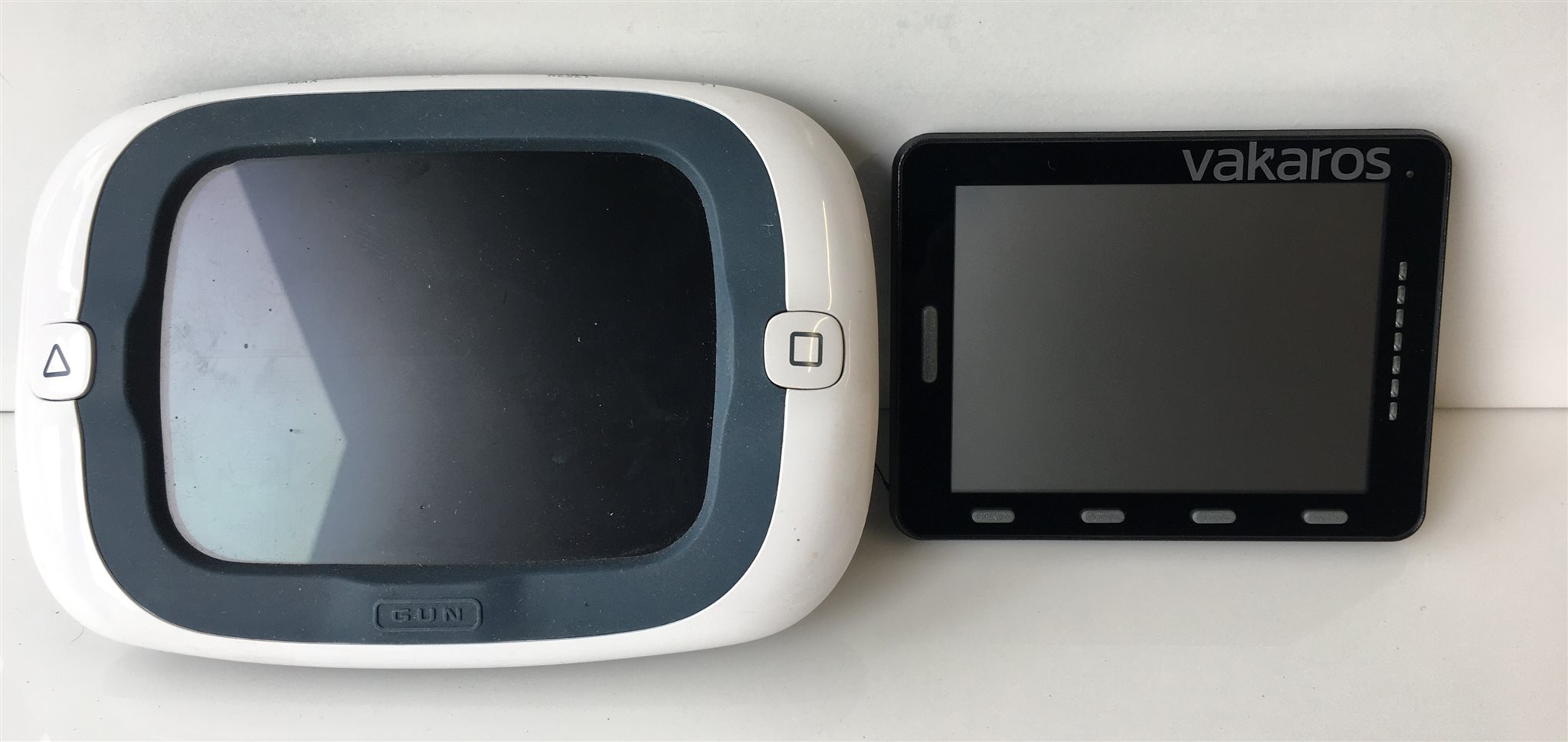

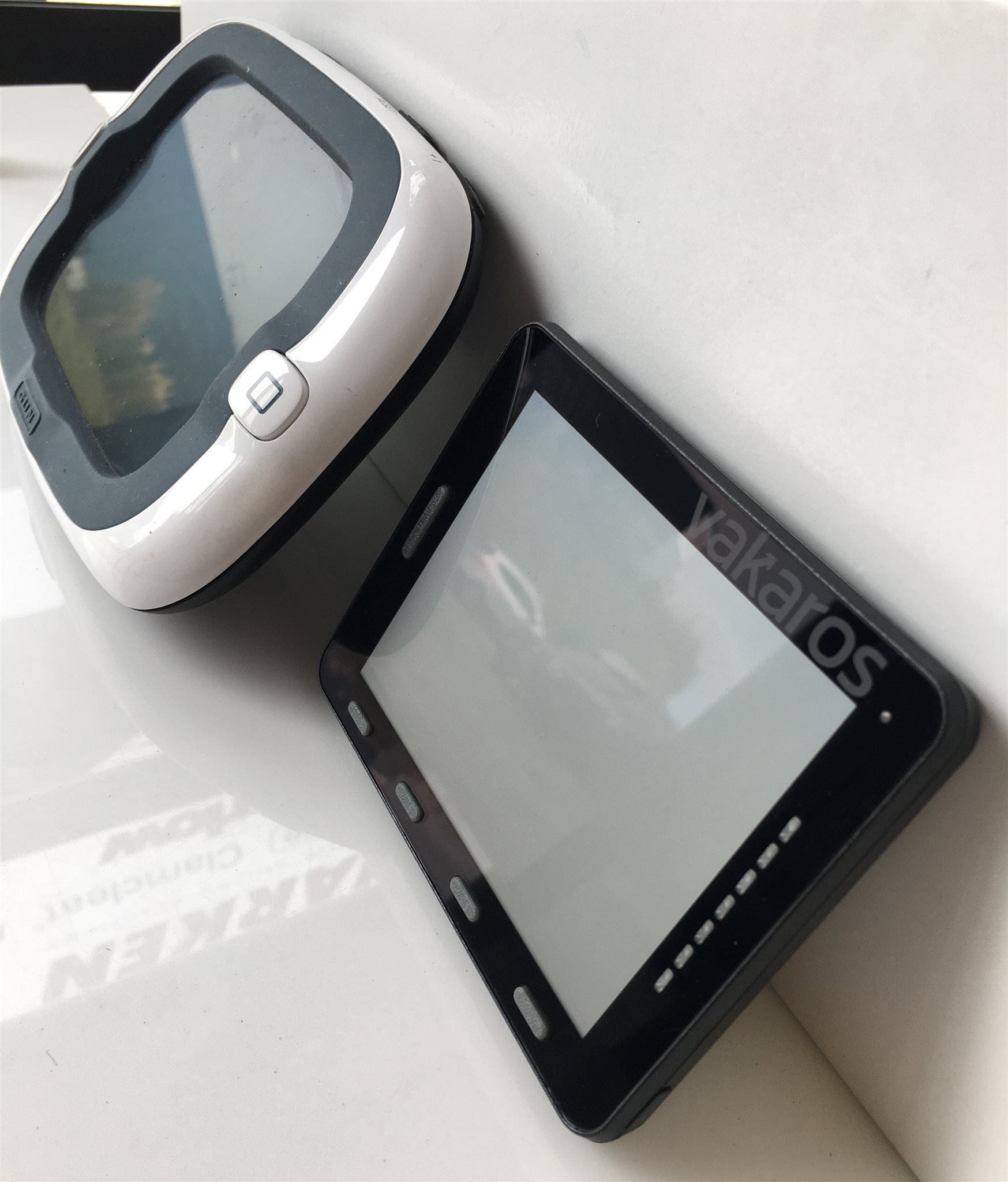

See the difference between the Pro-start and the new Atlas 2

SPECS

CORE MEASUREMENTS-
- Position
- Velocity
- Heading
- Heel
- Pitch
- Barometric Pressure
- Data logging at 10 Hz

INTERNAL SENSORS-
- 25 Hz L1+L5 dual-band, multi-constellation GNSS receiver
- 3-axis magnetometer
- 3-axis gyroscope
- 3-axis accelerometer
- Ambient light sensor
- Temperature sensor
- Barometric pressure sensor

FUNCTIONS-
- Distance-to-line
- Time-to-line
- Countdown timer
- Shift tracking
- Leeway angle and velocity
- Heel consistency
- Stripchart view
- VMG

POWER AND BATTERY-
- Run time: 100+ hours
- Integrated 4600 mAh rechargeable lithium-ion battery
- Qi-compatible wireless charging

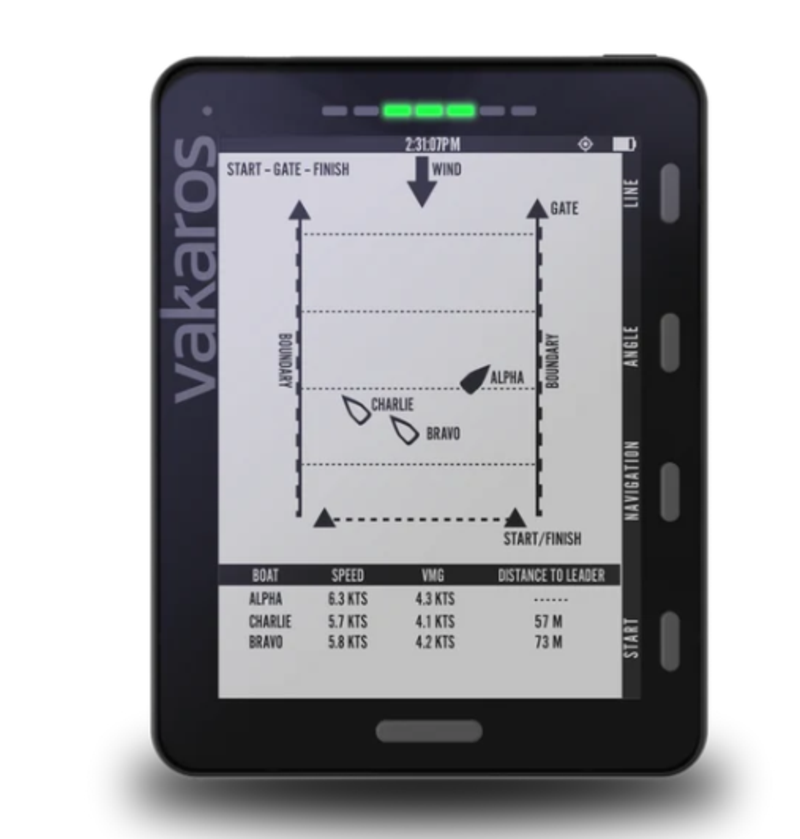

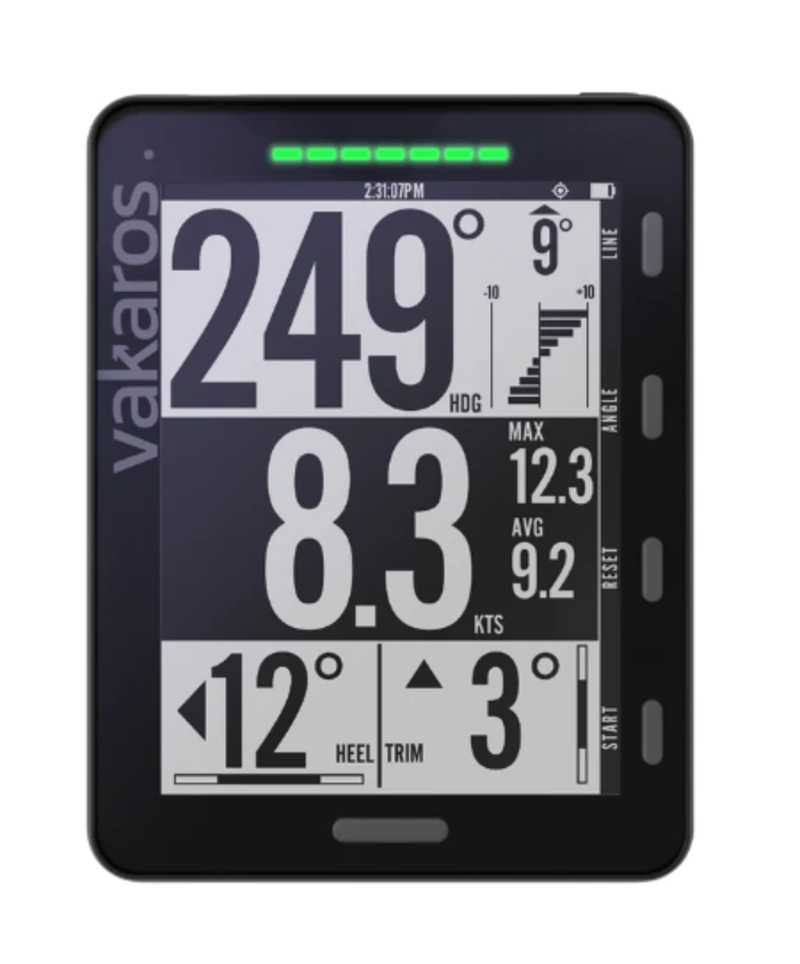

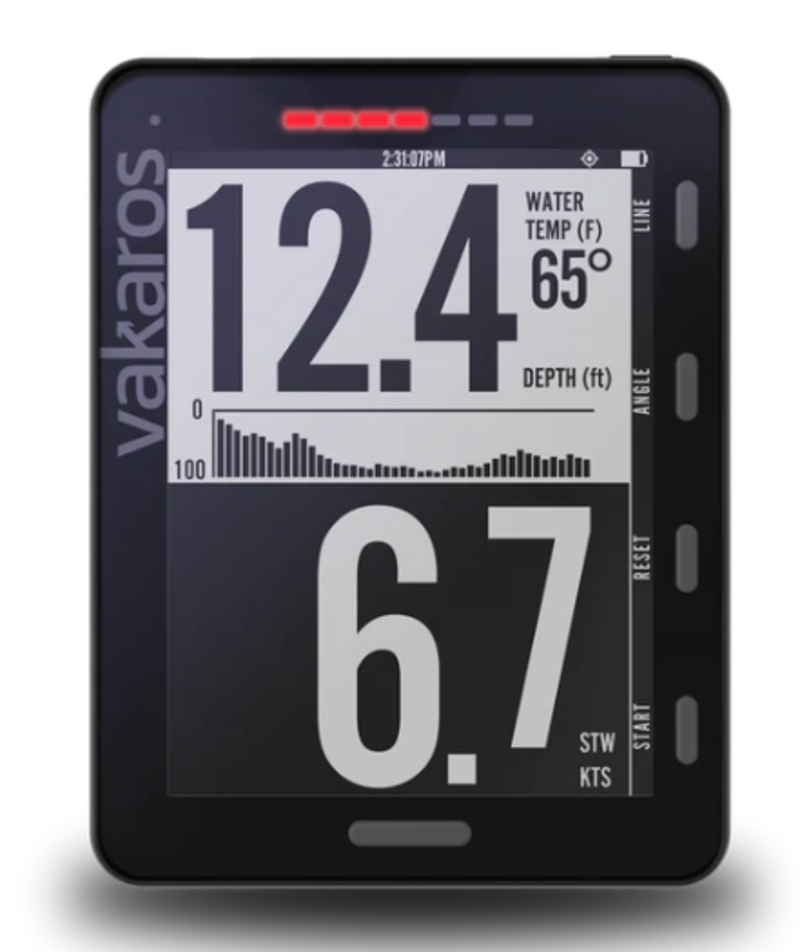

DISPLAY-
- High contrast, sunlight-readable
- 160 degree viewing cone
- 4.4" transflective LCD screen
- 320x240 pixel resolution, 91 ppi
- Digits up to 90 mm height (landscape), 40 mm height (2 metrics, portrait mode)
- Optically bonded 1.1 mm Gorilla Glass
- Multi-layer anti-reflective (AR) coating
- Water-shedding hydrophobic coating
- Adaptive red backlight
- RGB LED array

DATA STORAGE/SYSTEMS-
- 256 MB integrated storage
- 100+ hours, depending on logging rate
- Android and iOS compatible
