Axis FREERIDE SMALL 340mm Carbon Rear Wing
AX22RWING-340/80
QTY

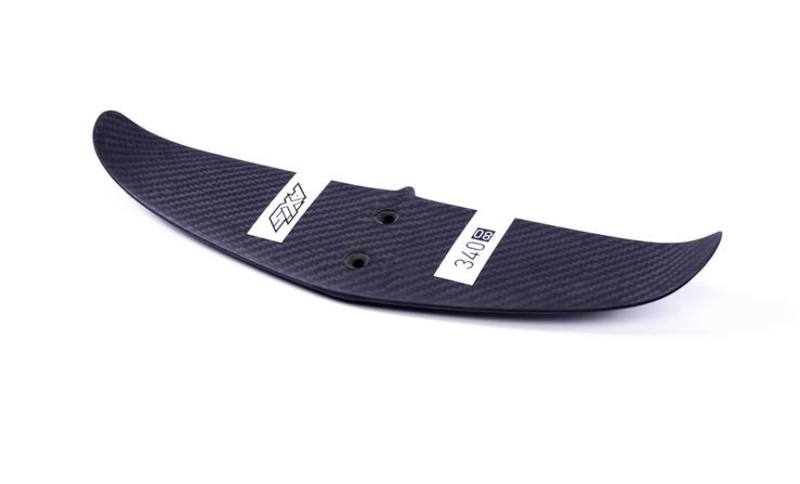

PURCHASEThe AXIS 340 Carbon Rear Wing is the smallest rear wing we make. Super loose, designed mainly for the 2020 600, and 545 kite wings, but also works well with the 680, 660 surf wings (for a super loose ride)

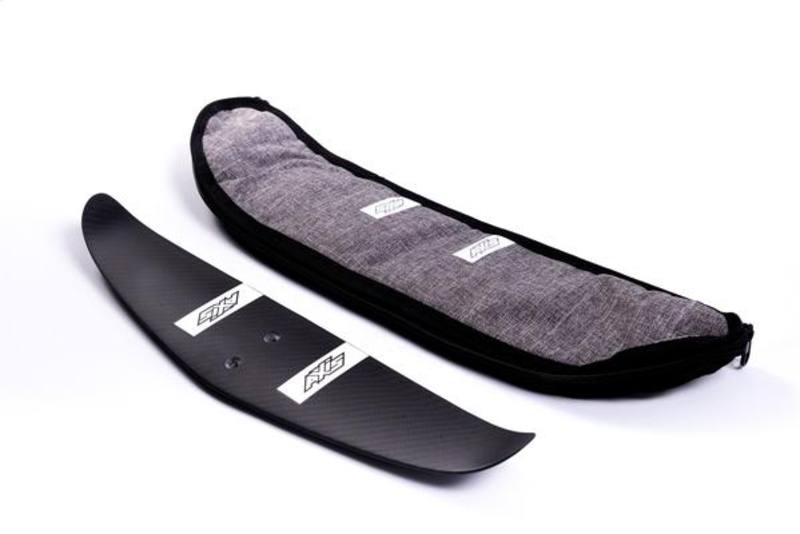

When you purchase the AXIS 340 carbon rear wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.
WINGSPAN: 340 mm / 13.39 in
CHORD: 80 mm / 3.15 in
ASPECT RATIO: 5.53
ACTUAL AREA : 221.01 cm² / 34.26 IN²
PROJECTED AREA: 209.13 cm² / 32.42 IN²
VOLUME: 113.21 cm³ / 5.53 IN³
