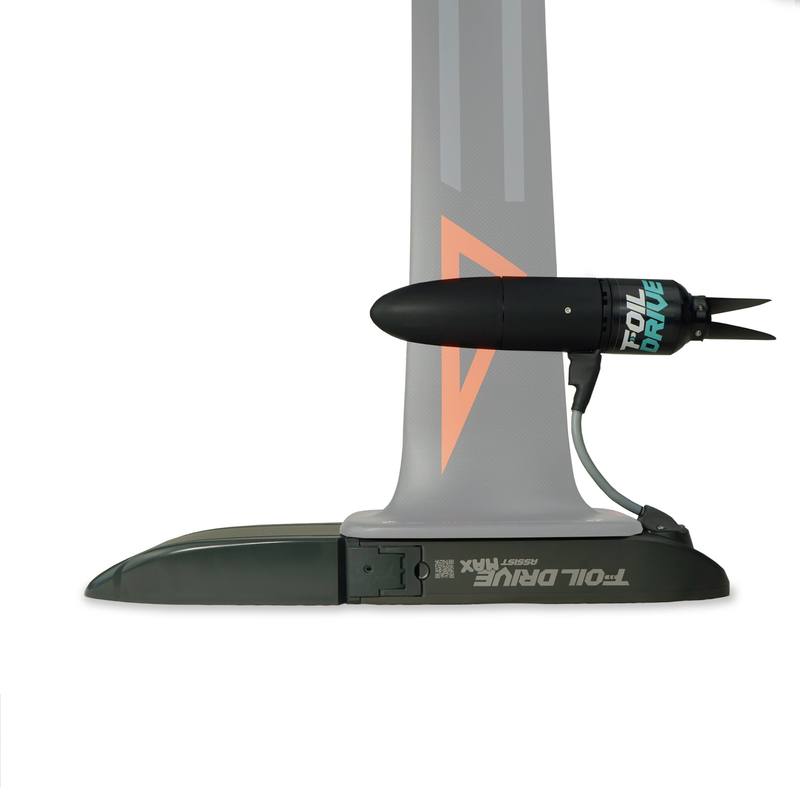

Foil Drive Assist MAX - Gen2 Motor - Mast Adaptor

FD 100


Please choose an option:




fd blue highway.jpg

Use the drop-down menu to order online which battery size you would like and we will contact you to discuss the best cable length for you and the brand of mast you want to use it on.

The Foil Drive Assist MAX is the flagship model, for the ultimate in hybrid electric assist foiling. As the name suggests, the Assist MAX offers the maximum thrust, run time and versatility!

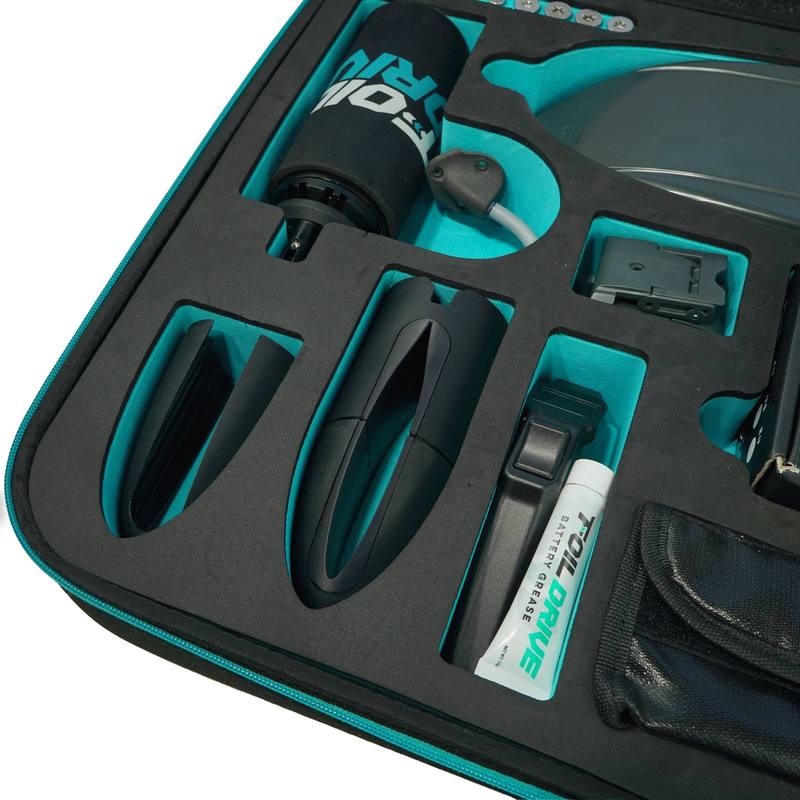

The kit includes everything you need to turn your existing foil and board into an electric-assisted foiling machine!

Simply choose your desired:

  • Gen2 Motor Height
  • Mast Adaptor to suit your exact foil mast of choice.

If you are looking for an integrated mast with your Assist MAX see:

  • Assist MAX x Project Cedrus Integrated Mast which we have listed separately
  • Assist MAX x AXIS Integrated Mast which we have listed separately

The Foil Drive Assist MAX is perfectly suited to those looking for extra thrust for heavier riders or smaller boards and foils, longer ride times and ultimate flexibility of how you choose to foil. Surf, Wing, Downwind, Wake and Flatwater, the Assist MAX does it all!



ECHNICAL SPECIFICATIONS:

  • Maximum Thrust: 27.5kg (60.6lbs) with Three Blade Alloy Props
  • Max Thrust: 27.5kg (60.6lbs)
  • Weight Range: 3.4-4.5kg (7.4-9.9lbs)
  • Dimensions with Long A Nose Cone: L525 x W25 x H50mm
  • Dimensions with Short B Nose Cone: L415 x W25 xH50mm
  • App compatibility: Foil Drive app, Android and IOS
  • Operating Voltage: 40V
  • Runtime (Generalised): 40min-4hrs depending on use case, battery and other variables.
  • Recharge Time: Appx. 2-3.5hrs
  • Batteries: IP68 rated dust and water resistant.

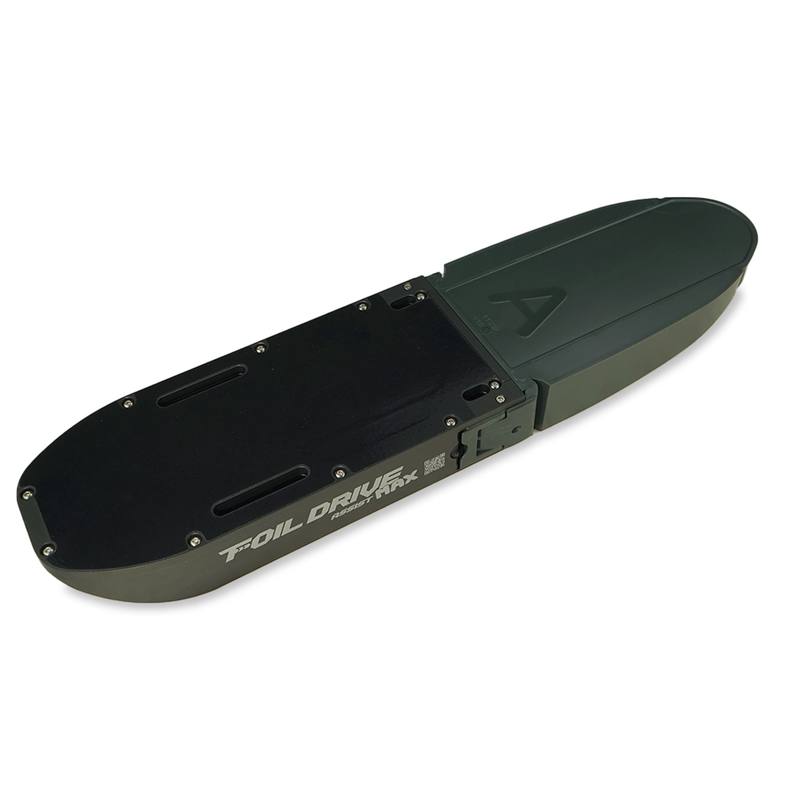

FOIL DRIVE MAX POWER BATTERY

The Foil Drive MAX Power Battery is the largest battery with 498Wh capacity. This offers the longest run time for those looking for high power performance.

As with all Gen2 Foil Drive batteries, the MAX Power Battery is certified IP68 rated for increased protection and peace of mind against water and dust.

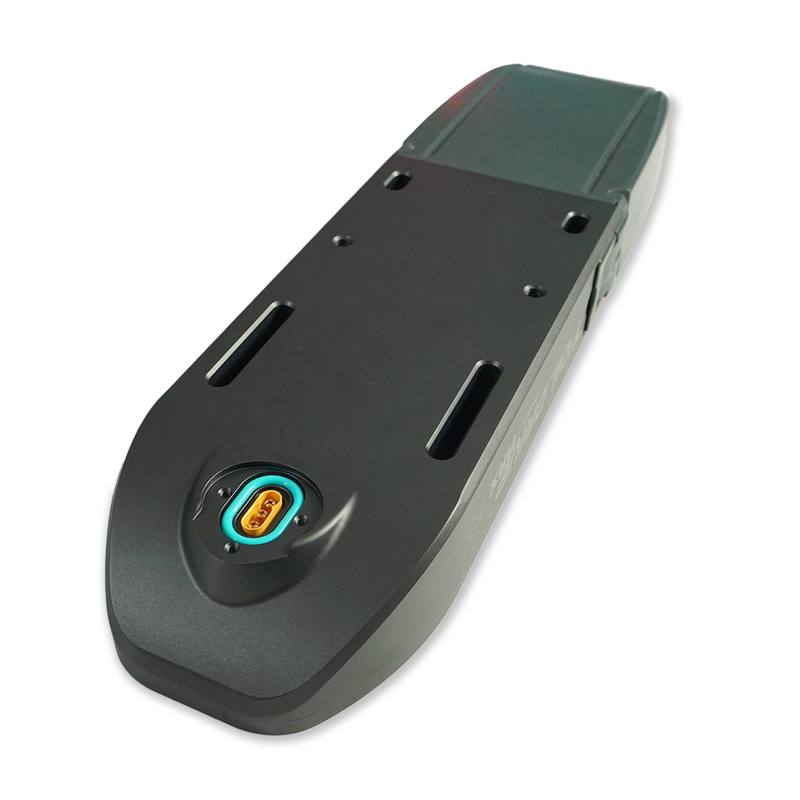

The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.

Only compatible with Foil Drive Assist MAX.

SPECIFICATIONS:

  • Nominal Voltage: 39.6 V
  • Max Voltage: 46.2 V
  • Rated Capacity: 12.6 Ah
  • Rated Capacity: 498.96 Wh
  • Battery Weight: 2.65kg (5.84lbs)
  • Certifications: UN, CE, IP68



FOIL DRIVE MAX SPORT BATTERY

These batteries won't be available until early 2024.

The Foil Drive MAX Sport Battery is the smaller, lighter MAX battery with 332 Wh capacity. This offers Assist MAX users the ability to reduce the weight of their install for those riders looking for ultimate performance at the cost of reduced runtime.

As with all Gen2 Foil Drive batteries, the MAX Sport Battery is certified IP68 rated for increased protection and peace of mind against water and dust.

The single power plug contains larger connectors that provide power to the Foil Drive unit and smaller connectors for charging the battery. The included dust cap provides extra protection during storage & transport.

Only compatible with Foil Drive Assist MAX.

SPECIFICATIONS:

  • Nominal Voltage: 39.6 V
  • Max Voltage: 46.2 V
  • Rated Capacity:  8.4 Ah
  • Rated Capacity: 332.64 Wh
  • Battery Weight: 1.85kg (4lbs)
  • Certifications: UN, CE, IP68
