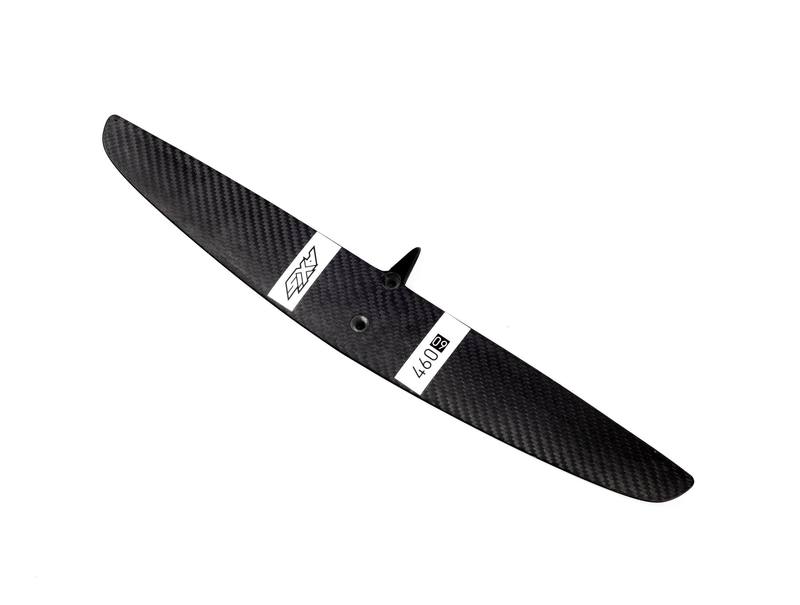

The AXIS 460 Rear wing is our fastest rear wing, and the perfect companion to the 900, 1000 and 1010 front wings.

Its flat profile, 60mm chord and foil section, make the 460 Carbon Rear Wing ideal for high performance downwinding. Many of our team riders also use the 460 for SUP, SURF, Wake and Pump foiling! A great high performance rear wing for multiple uses.

When you purchase the AXIS 460 carbon rear wing we include an AXIS padded cover with zipper, in heather gray, and AXIS branding, for safer setup, transportation and storage.

WINGSPAN: 460 mm / 18.11 in

CHORD: 60 mm / 2.36 in

ASPECT RATIO: 9.45

ACTUAL AREA : 227.2 cm² / 35.22 IN²

PROJECTED AREA: 223.87 cm² / 34.70 IN²

VOLUME: 81.39 cm³ / 4.97 IN³

Assembly

What screws to mount wing to the fuselage:
